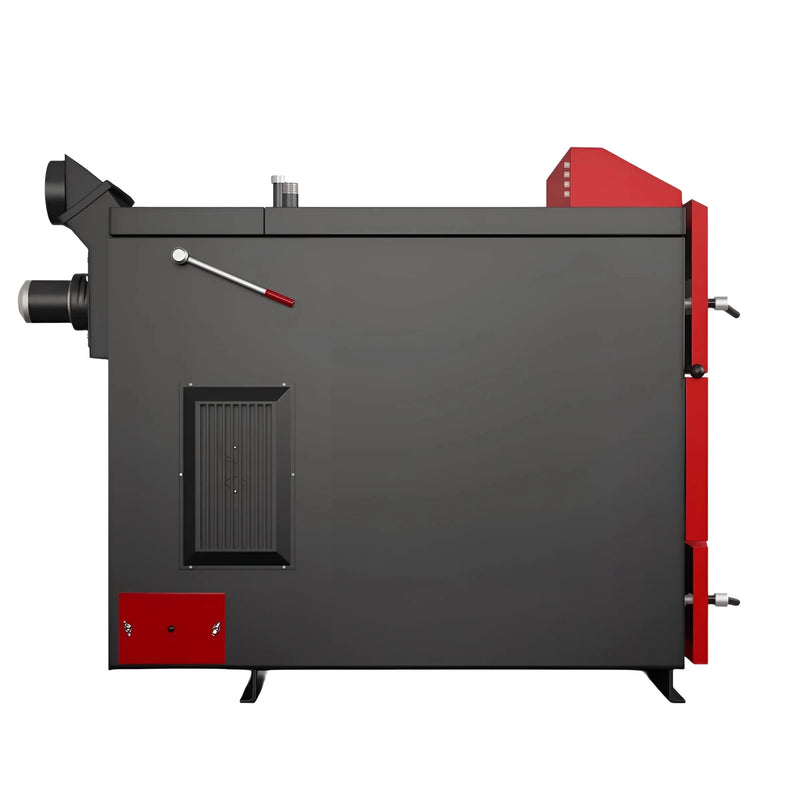

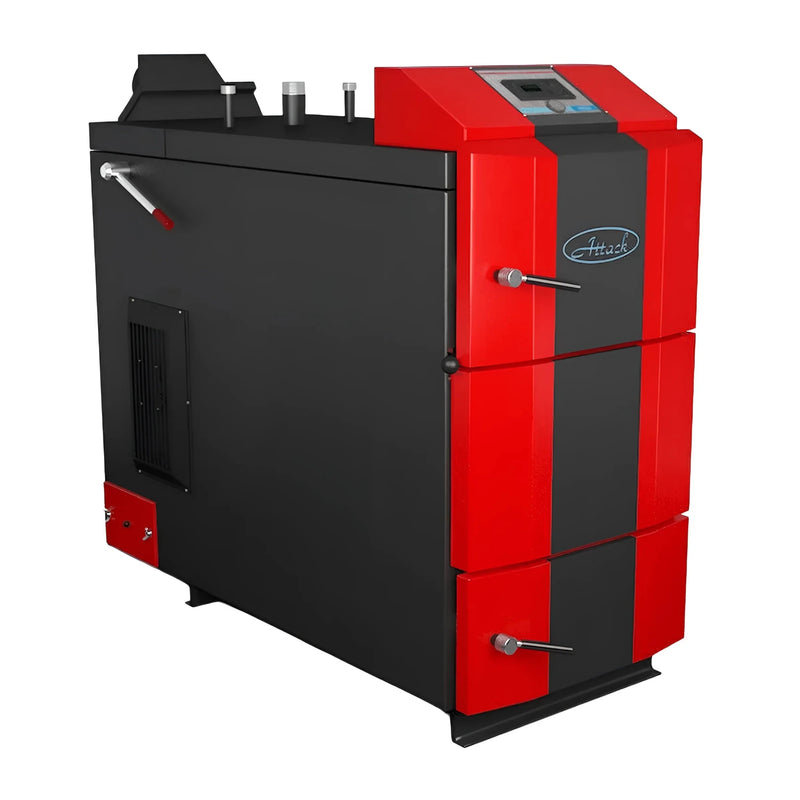

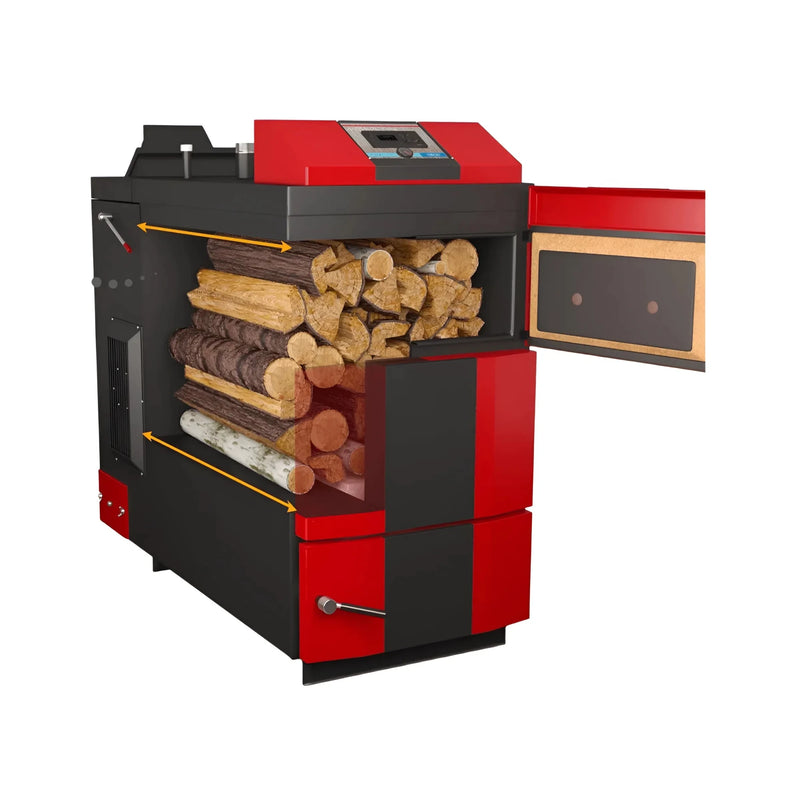

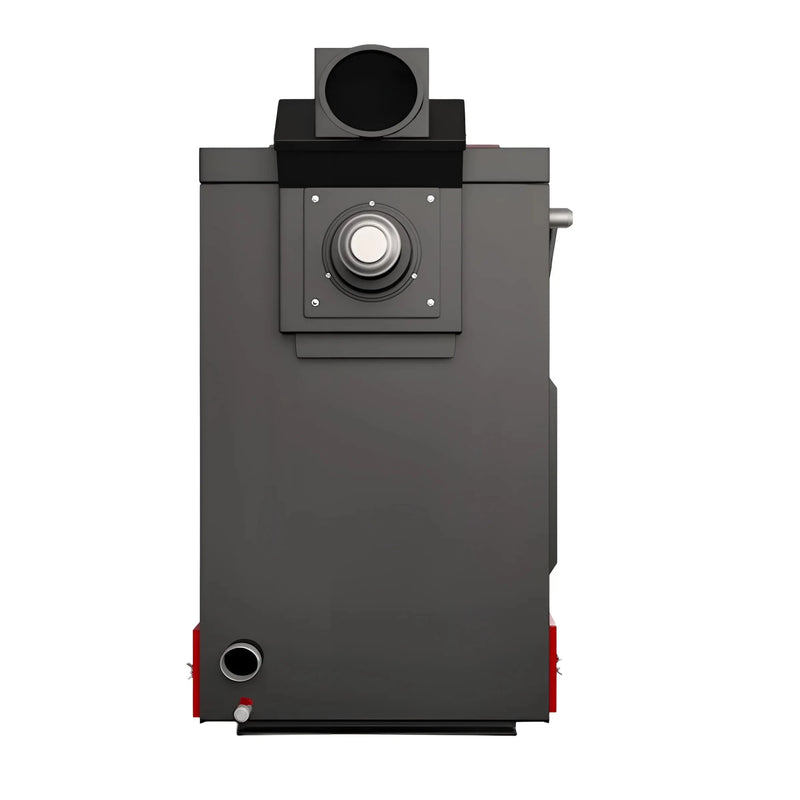

Wood Gasification Boiler Attack DPX 100 Profi 100 kW Log Wood

The Attack DPX 100 Profi is a powerful wood gasification boiler for the efficient combustion of split logs. With a rated output of approximately 100 kW, the unit is ideally suited for larger residential buildings, agricultural operations, or commercial applications. The boiler operates on the wood gasification principle for clean and efficient energy generation.

⭐ Highlights / Advantages

• ⭐ Wood gasification boiler with approx. 98.2 kW rated output for large heating systems
• ⭐ Energy efficiency class A+ for economical operation
• ⭐ Optimized for split logs with high combustion efficiency
• ⭐ Robust construction for long-lasting use in continuous operation
• ⭐ Suitable for combination with large buffer tanks

Application Area & Target Audience

The Attack DPX 100 Profi is aimed at:

• Private customers with high heat demand (e.g., multi-family houses)
• HVAC specialist companies for demanding heating projects
• Commercial and agricultural applications
• Renovations as well as new builds with wood heating

Advantages in Everyday Use

The wood gasification boiler enables the efficient use of split logs as a renewable fuel. Through optimized combustion, stable operation is achieved with simultaneously reduced emissions. In combination with a sufficiently sized buffer tank, a comfortable and low-maintenance heating system is created.

Technology & Features

The Attack DPX 100 Profi operates on the wood gasification principle with a separate combustion zone. The air supply is via primary and secondary air flaps, which are adjusted for optimal gasification. For efficient heat transfer, the boiler is equipped with a tube heat exchanger that can be cleaned regularly.

For safe operation, the following components are required:

• Thermal discharge safety device
• Return temperature elevation (e.g., mixing system)
• Expansion vessel and safety valve

Operation is manual with split logs as the primary fuel. :contentReference[oaicite:0]{index=0}

Efficiency & Environment

The boiler achieves an energy efficiency class of A+ as well as a utilization rate of up to 81.4 % at rated output. The seasonal space heating efficiency is 78 %. :contentReference[oaicite:1]{index=1}

Through the wood gasification technology, clean combustion with reduced emissions is achieved:

• Dust: 40 mg/m³
• CO: 270 mg/m³
• NOx: 198 mg/m³

Compatibility & System Integration

The Attack DPX 100 Profi must be integrated into a suitable heating system:

• Buffer tank (recommended ≥ 4330 liters)
• Radiator or underfloor heating systems
• Hydraulic integration with return temperature elevation

Operation without a buffer tank is not intended by the manufacturer and can significantly reduce efficiency. :contentReference[oaicite:2]{index=2}

Technical Data

Scope of Delivery

not specified in the data sheet

Accessories & System Recommendations

For safe and efficient operation, the following accessories are recommended:

Installation & Safety Notes

Installation must be carried out exclusively by a qualified specialist company. The chimney must meet the required draft conditions; otherwise, function may be impaired. The operating pressure in the heating system must not exceed 2.5 bar. :contentReference[oaicite:3]{index=3}

For a long service life, a return temperature of over 65 °C must be ensured. :contentReference[oaicite:4]{index=4}
