Hot water tank for drinking water/domestic water 100 to 180 liters
Hot water tank for drinking water/service water 100 to 180 liters with 1 WT
The Hot water tank 100 l, 120 l or 150 l with 1 heat exchanger is used for central and safe hot water heating.
The highly efficient heat exchanger heats Drinking water/process water inside, via the heat energy from a thermal solar system or from a boiler. An additional option for heating your hot water is to connect the Photovoltaic system with a retrofittable 1 1/2" heating element, which is connected to the drinking water tank. For a long service life, the hot water tank features corrosion protection in the form of a high-quality enamel coating. A built-in magnesium anode (protective, sacrificial anode) provides additional corrosion protection inside the tank.
Advantages :
- Very good price-performance ratio
- High hot water comfort for a requirement of 100 - 180 liters
- A highly efficient heat exchanger
- With circulation connection
- Connection for a 1 1/2" Electric heating element
- Large magnesium anode for protection against corrosion
- Thermal insulation polyurethane foam (PUR), firmly foamed
- Corrosion protection inside through a high-quality enamel coating
- Can be combined with solid fuel boilers, wood gasification boilers, pellet boilers, combi boilers or solar thermal systems
Technical data 100 liter hot water tank:
- Volume: 100 liters
- Heat exchanger surface: 1.2 m²
- Heat exchanger capacity: 5.27 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 28 watts
- Dimensions with insulation (diameter x height): 625 x 770 mm
- Weight (empty): 64 kg
Technical data 120 liter hot water tank:
- Volume: 120 liters
- Heat exchanger surface: 1.4 m²
- Heat exchanger capacity: 6.1 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 32 watts
- Dimensions with insulation (diameter x height): 565 x 1045 mm
- Weight (empty): 71 kg

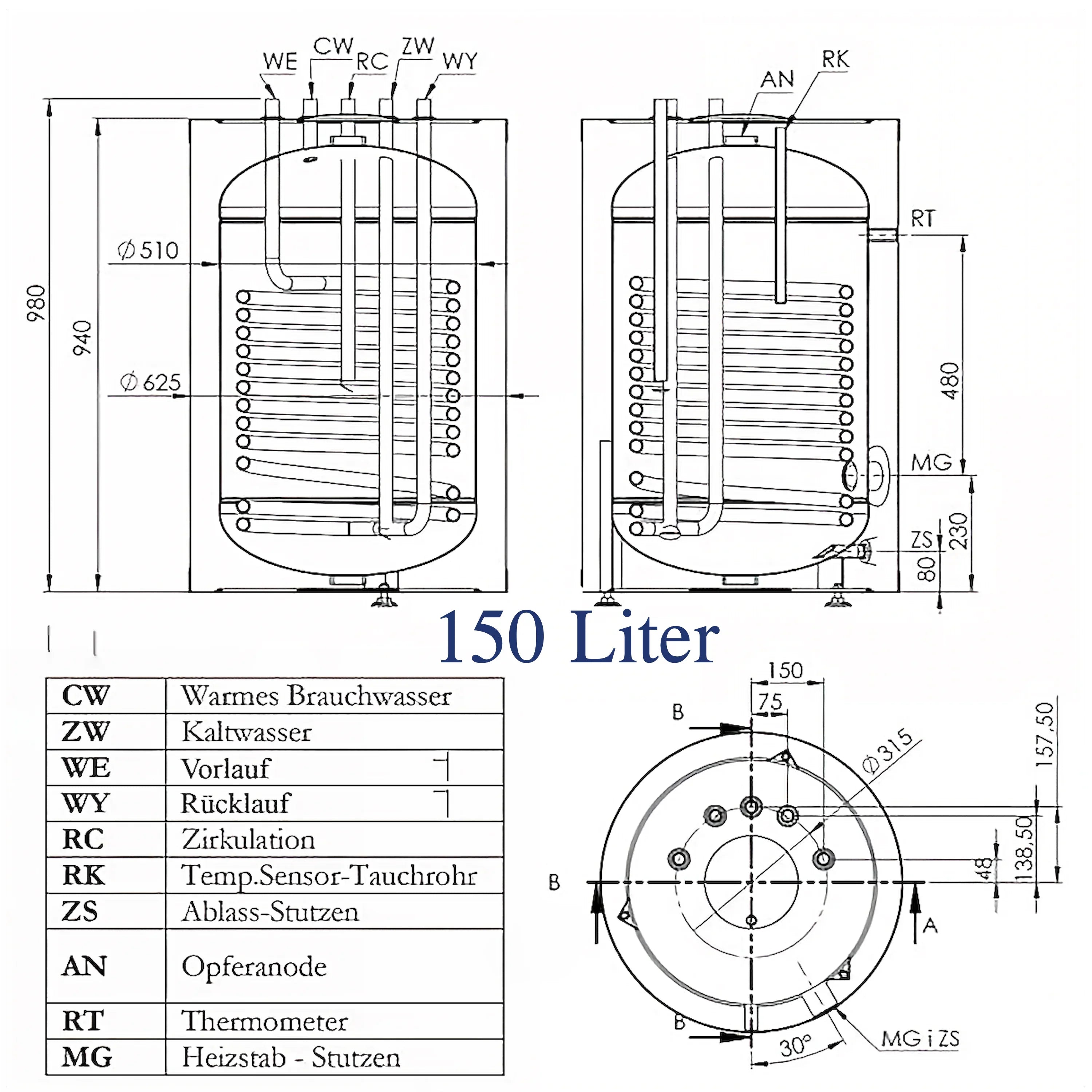

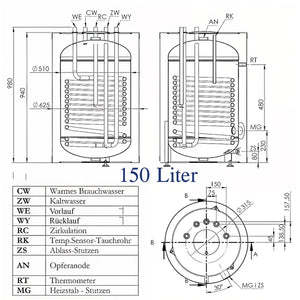

Technical data 150 liter hot water tank:
- Volume: 150 liters
- Heat exchanger surface: 1.4 m²
- Heat exchanger capacity: 6.1 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max.Operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 36 watts
- Inner diameter of storage tank: 510 mm
- Dimensions with insulation (diameter x height): 625 x 980 mm
- Weight (empty): 76 kg

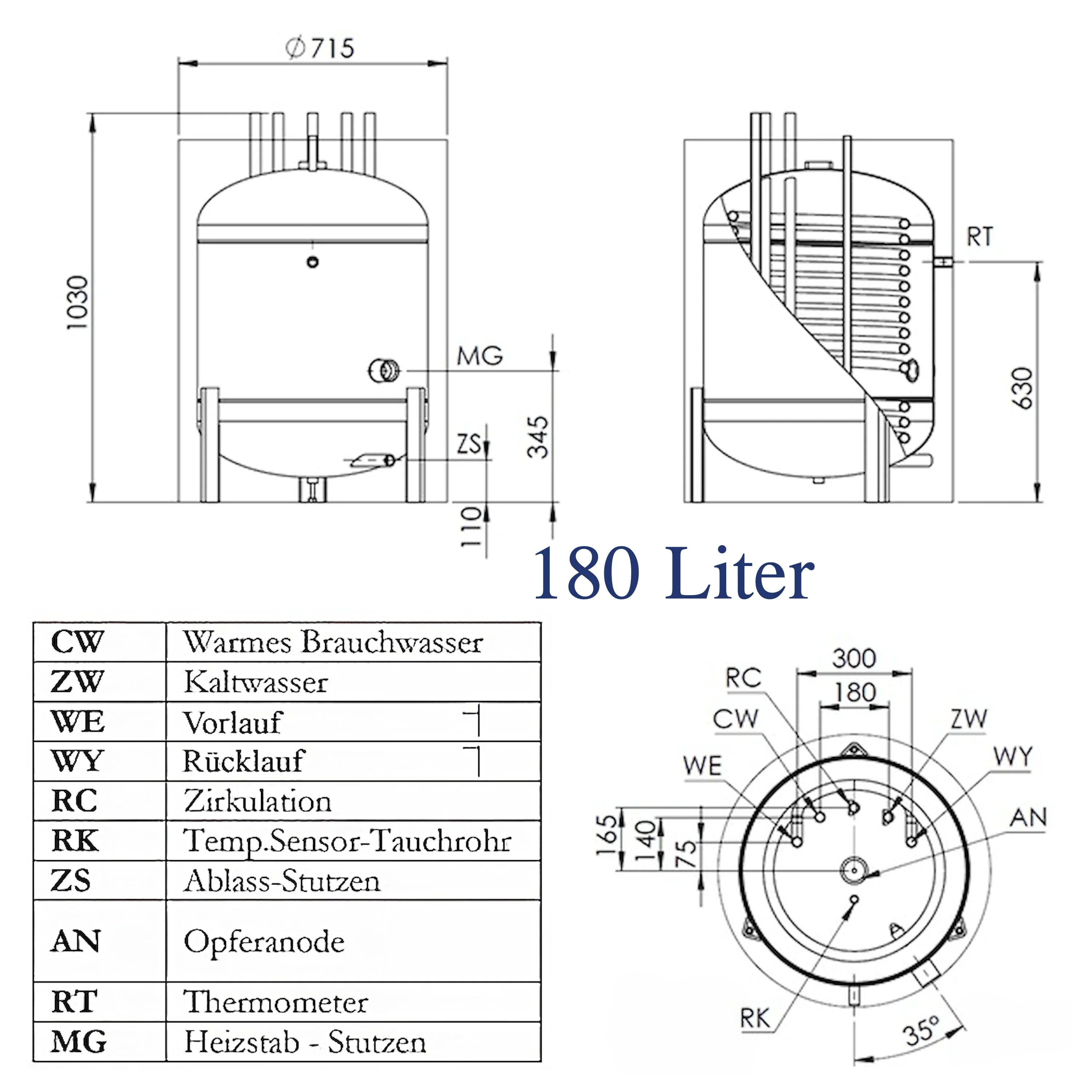

Technical data 180 liter hot water tank:
- Volume: 183 liters
- Heat exchanger surface: 1.67 m²
- Heat exchanger capacity: 7.8 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 42 watts
- Inner diameter of storage tank: 715 mm
- Dimensions with insulation (diameter x height): 715 x 1030 mm
- Weight (empty): 88 kg
Scope of delivery:
- Hot water tank with 1 heat exchanger including insulation
- safety valve
- Operating and maintenance instructions
