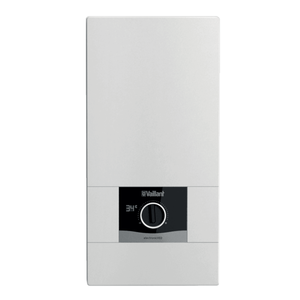

Vaillant electronic VED instantaneous water heater
Vaillant electric instantaneous water heater
Whether in the bathroom or kitchen, in a single-family house or in an apartment: Our electronicVED devices are suitable for almost any application and can supply one or more draw-off points with hot water at the same time. Since the water is heated directly at the draw-off point, there are no storage or circulation line losses – and the short pipe runs also reduce heat losses to a minimum. At the same time, this improves drinking water hygiene. In addition, with a depth of only 99 mm, they are particularly space-saving and fit even in the smallest niche.
Easiest operation of the Vaillant electronic VED instantaneous water heater
Temperature setting on the electronicVED and electronicVED pro devices could not be simpler: on both product lines, it is done via a practical rotary knob. On the electronicVED, the desired temperature can be set continuously and precisely to the degree – and thanks to the new digital temperature display, it can also be read directly. On the electronicVED pro, you can choose between three preset temperature levels: 35°C, 45°C or 55°C – which can be varied by mixing in cold water.
Installation made easy

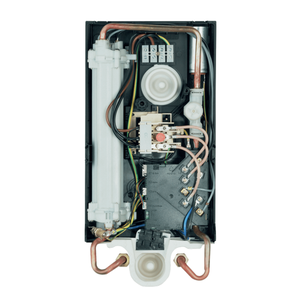

Thanks to our Pro-I installation system, all electronicVED devices are installed in no time. The integrated folding frame ensures easy access to the connection fitting, the included inlet shut-off valve ensures simple device maintenance, and the rotatable device cover ensures easy operation during under-sink installation. In addition, all electronicVED devices are compatible with all third-party devices: thanks to the universal mounting plate, old devices can be easily replaced. The device structure with plug-in components – all of which are of course made from recyclable materials – enables simple disassembly.
Ideal for the replacement business
Thanks to their high cost-effectiveness, our electronic instantaneous water heaters are ideal for modernization: after all, when replacing hydraulically controlled devices, they save up to 30% in energy and water costs. This is because with our electronicVED devices, the outlet temperature can be preset precisely to the degree.
- Continuously adjustable temperature controller
- 7-segment temperature display
- Electronic power control
- PRO I installation system for maximum ease of installation: variable electrical connection, folding frame at the bottom
- Suitable for plastic pipe systems according to DIN 1988 and DIN 16892/16893
- Splash water protection IP 25 D enables unrestricted installation in protection zone 1
- UV-resistant device cover (no yellowing due to UV radiation)
- Hot water comfort: constant, continuously adjustable outlet temperature from 30 °C to 55 °C up to the performance limit
- 7-segment temperature display for precise temperature preselection
- Energy and water savings of up to 30% compared to hydraulic instantaneous water heaters
- Easy and fast maintenance thanks to good accessibility of easily replaceable components
- Automatic air bubble detection on all electronic devices
- Adjustable anti-scald protection
Technical data: Electronic instantaneous water heater VED
| Technical data |
Unit |
VED E 18/8 |
VED E 21/8 |
VED E 24/8 |
VED E 27/8 |
| Heating output |
kW |
18 |
21 |
24 |
27 |
| Output control |
|
Electronically controlled |
Electronically controlled |
Electronically controlled |
Electronically controlled |
| Continuous DHW output Δt 30K |
l/min |
8 |
8 |
8 |
10 |
| Voltage |
|
400V/50Hz |
400V/50Hz |
400V/50Hz |
400V/50Hz |
| Electrical connection |
|
Cable |
Cable |
Cable |
Cable |
| Protection class |
|
IP25 |
IP25 |
IP25 |
IP25 |
| Hot water temperature (min - max) |
°C |
30 - 55 |
30 - 55 |
30 - 55 |
30 - 55 |
| Max. inlet temperature |
°C |
55 |
55 |
55 |
25 |
| Product dimensions (height / width / depth) |
mm |
481 / 240 / 99 |
481 / 240 / 99 |
481 / 240 / 99 |
481 / 240 / 99 |
| Product weight |
kg |
4.4 |
4.4 |
4.4 |
4.4 |
- 1 electronic instantaneous water heater VED
- 1 cold water connection piece R 1/2 with cold water shut-off valve
- 1 hot water connection piece R 1/2
- 1 mounting plate
- 1 mounting template
- 1 set of mounting materials
- 1 operating and installation manual
- 1 product data sheet, energy efficiency label
