Vaillant solar package flat collectors 12.55 m²

Vaillant solar package flat collectors 12.55 m²

Vaillant solar package

The system described here is eligible for funding under BEG EM (Federal Funding for Efficient Buildings – Individual Measures).

Solar collector systems receive up to 30% funding on the costs for purchase and installation. Optional bonuses are Up to 70% funding possible!

Find out more in our Guide to heating subsidies about the general conditions and the application process.

Flat-plate collectors auroTHERM

Vaillant solar package flat collectors 12.55 m²

There are two types of collectors: flat-plate and tube collectors. In flat-plate collectors, the tubes containing the solar fluid are placed behind a coated plate, the absorber sheet. In tube collectors, however, the tubes are coated directly. Because the absorber completely encloses the tubes and is surrounded by a vacuum, these collectors reach higher temperatures and efficiencies more quickly. Whether tube or flat-plate collectors: All our solar collectors are sustainably manufactured in Europe.

Flat-plate collectors auroTHERM plus and auroTHERM: for pressure-controlled solar systems

Our flat-plate collectors auroTHERM plus and auroTHERM are suitable for solar hot water generation and solar heating support. Thanks to their slimline height of just 80 mm, they can be seamlessly integrated into any roof. The auroTHERM plus collectors, with their anti-reflective glass and high-quality sidewall insulation, offer excellent heat transfer. In contrast, our auroTHERM collectors, with their robust structural glass, are a solid and cost-effective solution for entry into solar technology.

Flat-plate collectors auroTHERM classic: for return-flow solar systems

Our auroTHERM classic flat-plate collectors, with their timelessly elegant design, make a striking impression on any roof. For properties with high peak demand, such as hotels, larger collector arrays can be easily installed.

Solar yields on every area

Whether flat or pitched roof, balcony, or facade: With their diverse mounting options, our solar collectors are suitable for any roof structure. They can be arranged side by side or one above the other, ensuring optimal use of the available space everywhere.

Special features

• Collector with homogeneous disc surface, 2.51 m² gross area
• Solar-assisted hot water preparation and heating support
• On-roof, in-roof and flat roof installation, pitched roof mounting and facade installation possible
• Minimized heat losses through collector frames with integrated side insulation
• For vertical mounting
• Black anodized aluminum frame

Product features

• Highly selective coated aluminum/copper absorber (serpentine)
• Clear anti-reflective glass
• Low height
• Low weight

Vaillant buffer tank auroSTOR

The new Solar combination storage VPS RS 800 offers the best price-performance ratio among solar-assisted heating systems. Its lower heat losses ensure high energy efficiency in compliance with the latest ErP directive.The stainless steel drinking water pipe coil not only guarantees hygienic comfort, it also minimizes installation and maintenance costs.

Special features

• Buffer tank with integrated drinking water heating
• Hygienic hot water preparation through high-quality stainless steel corrugated pipe
• Heat exchanger in the flow principle
• Minimal standby energy losses due to highly efficient thermal insulation
• Easy installation thanks to removable thermal insulation

Product features

• Steel buffer tank
• Baffle plates for optimal stratification
• Spiral-shaped stainless steel corrugated pipe for hot water preparation
• Internal solar tube coil heat exchanger made of steel
• Contact sensor tabs
• Ventilation on the heating side

Technical data: Vaillant solar package flat collectors 12.55 m²

Manufacturer:	Vaillant
Designation:	auroSTOR VPS RS 800 B solar combination buffer storage tank
Item number:	0010022523
Nominal volume:	803 liters
Product dimensions (height/width/depth):	1,975/1,090/1,090 mm
Installation dimensions (height/width/depth):	1,915/790/790 mm
Product weight:	213 kg

Vaillant solar station VMS 70 two-pipe solar station (solar pipe group)

Scope of delivery:

• Vaillant solar station VMS 70 two-pipe solar station (solar pipe group)
  - highly efficient solar circulation pump
  - Filling and emptying valve
  - Air separator with air release valve
  - Shut-off ball valves with integrated gravity brake
  - Check valve
  - Safety valve 6 bar
  - Thermometer, 2 pieces
  - Pressure gauge
  - Pipe connections 3/4" flat sealing
  - Mounting material, flat seals
  - pre-assembled cables
  - up to a maximum of 70 m² collector area
  - can be used for auroTHERM, auroTHERM exclusiv, auroTHERM plus

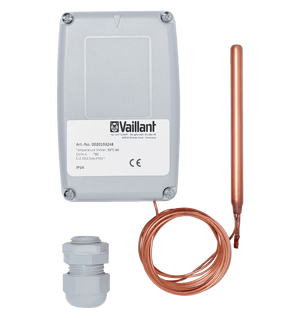

  A notice: The storage temperature limiter is required (item no. 0020193248).

  When using the VMS 70 solar station in combination with the VRS 620/3 solar controller, the PWM signal converter is mandatory, order no. 0020202186.
