Gema GmbH | SKU:
TC100
Sold out
Retail thermostat including diving sleeve for automatic temperature control 0 ° C-90 ° C
Normal price
30,00 €
Basic price
/
Not available
vAT included.
Shipment will be charged at checkout.
Retail thermostat including diving sleeve for automatic temperature control 0 ° C-90 ° C is in stock and will be shipped as soon as it is available again
Delivery and shipping
Delivery and shipping
Processing time is typically 1 business day. Delivery for parcels is 1-3 business days. For freight forwarding, delivery time is 3-5 business days. Delivery times outside Germany vary.
Description
Description

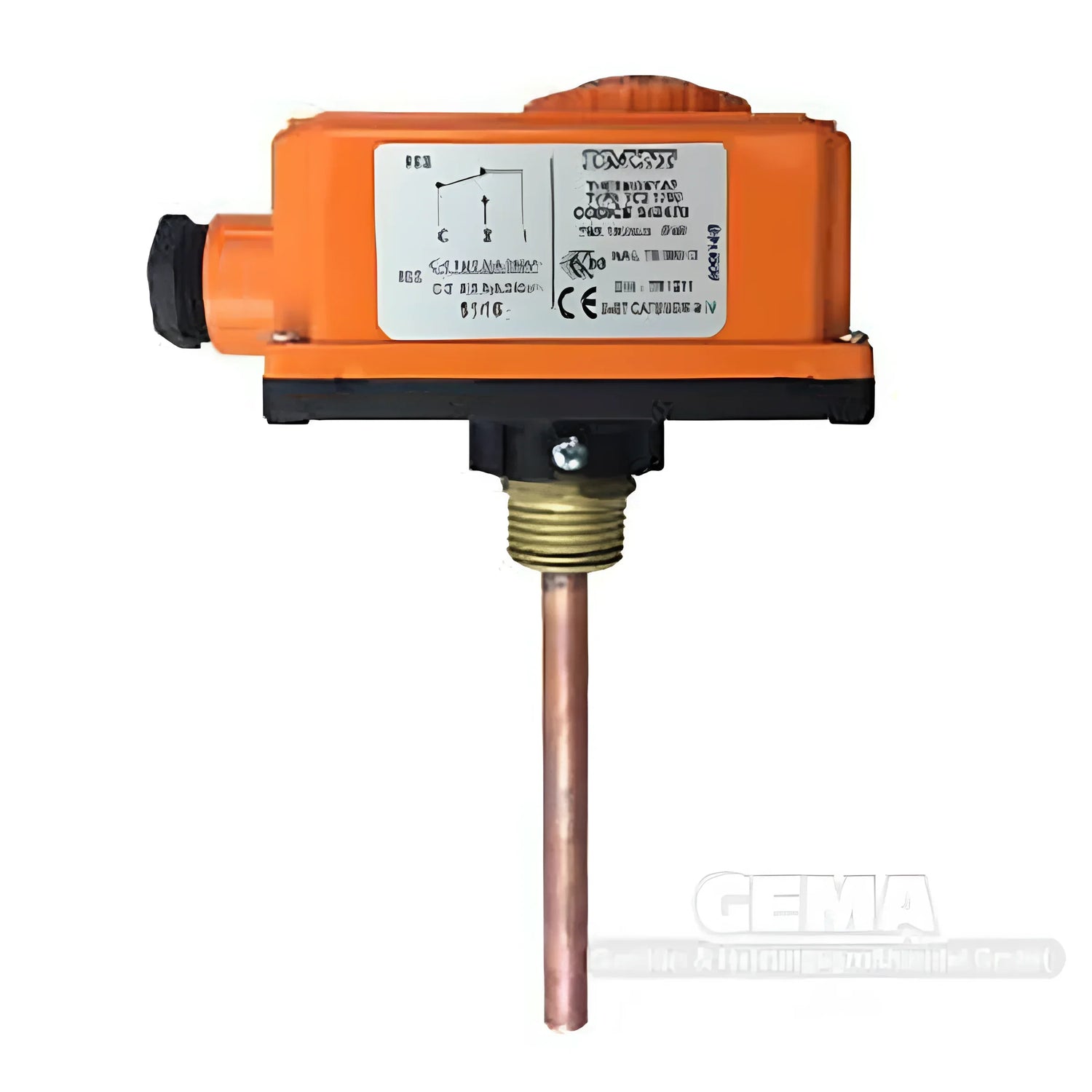

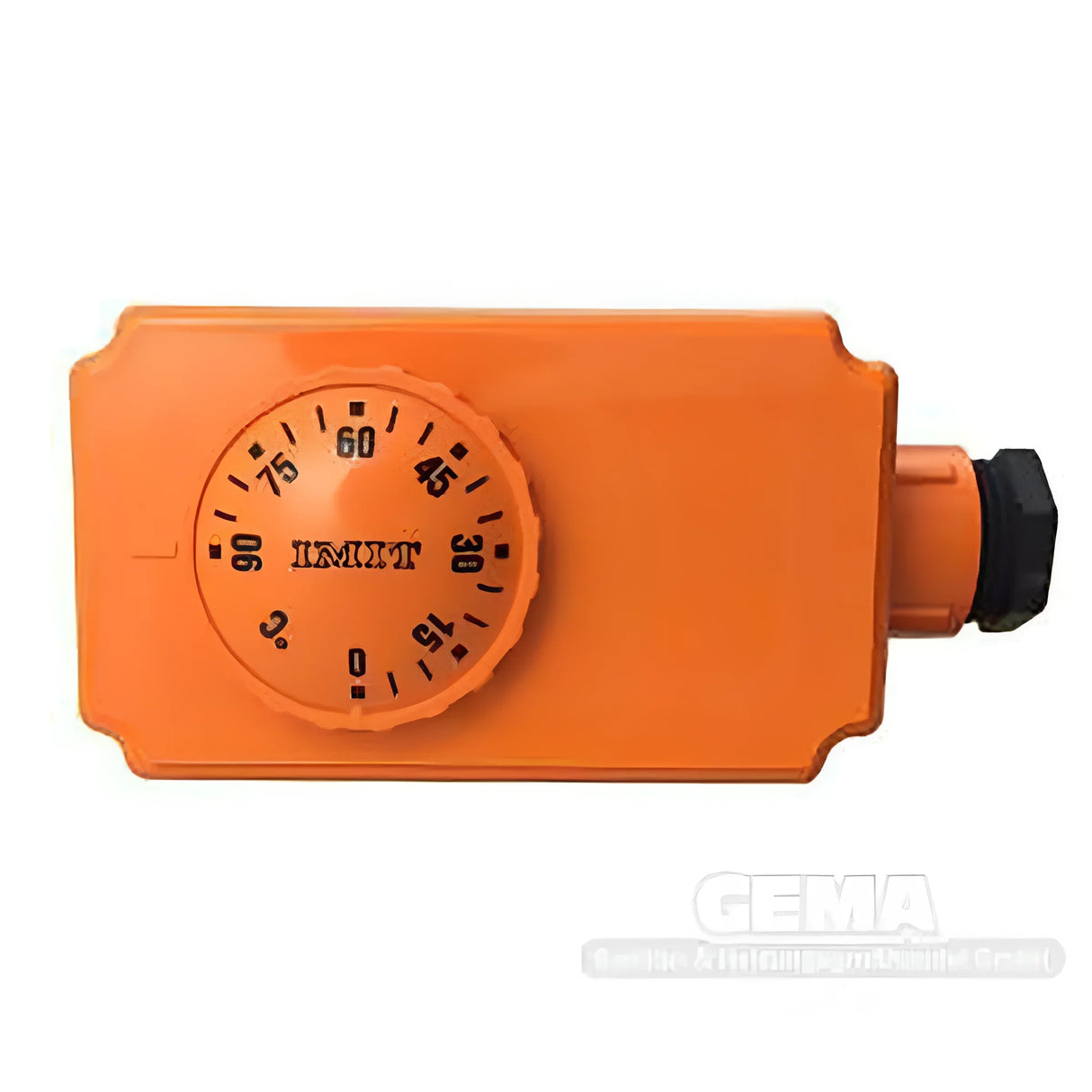

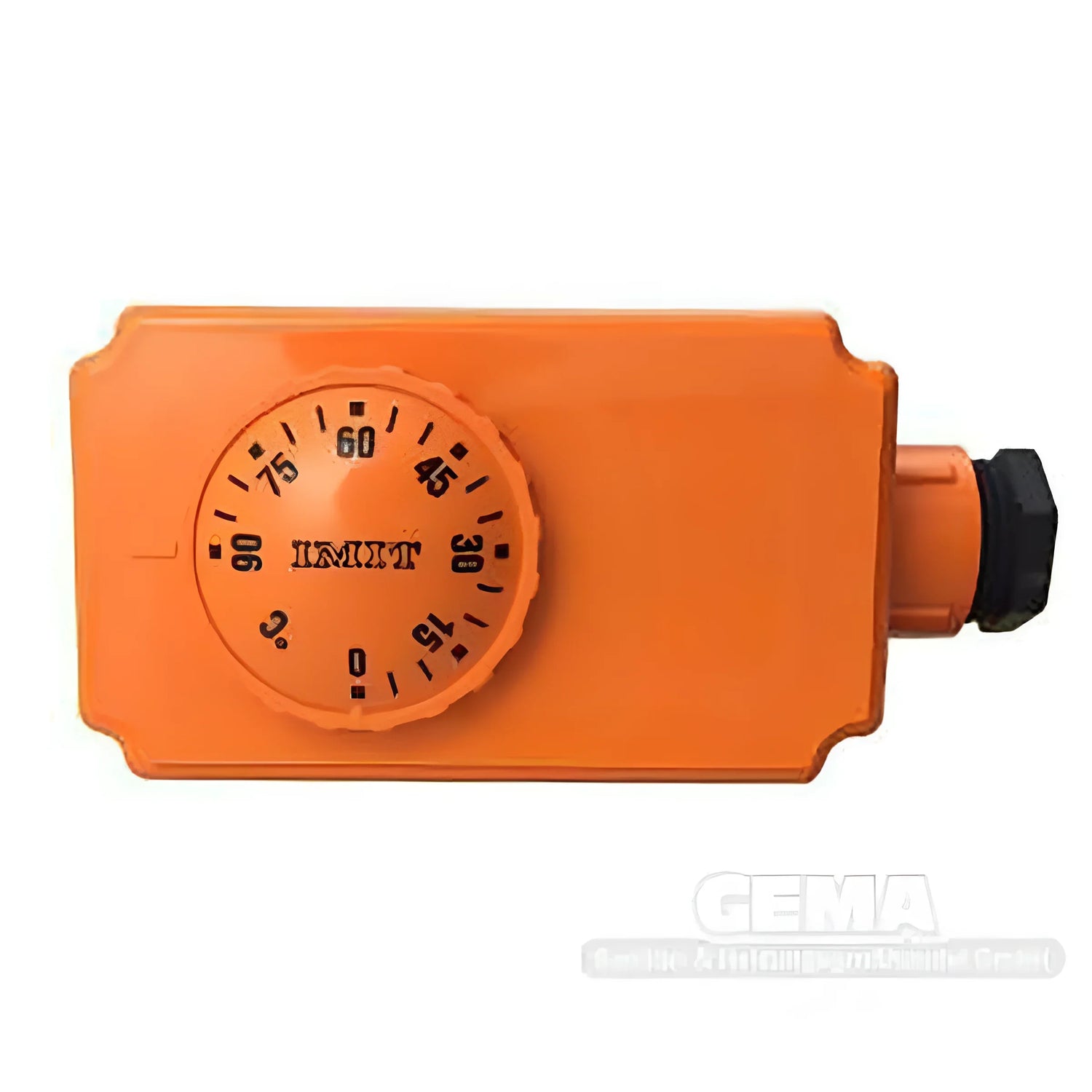

Control thermostat including immersion sleeve
Control thermostat inkl.TauchhSleeve is used for automatic temperature control from 0°C- 90°C of boilers, storage tanks and boilers with external adjustment.
For automatic temperature control from 0°C- 90°C of boilers, storage tanks and boilers with external adjustment.
Technical data: Thermostat

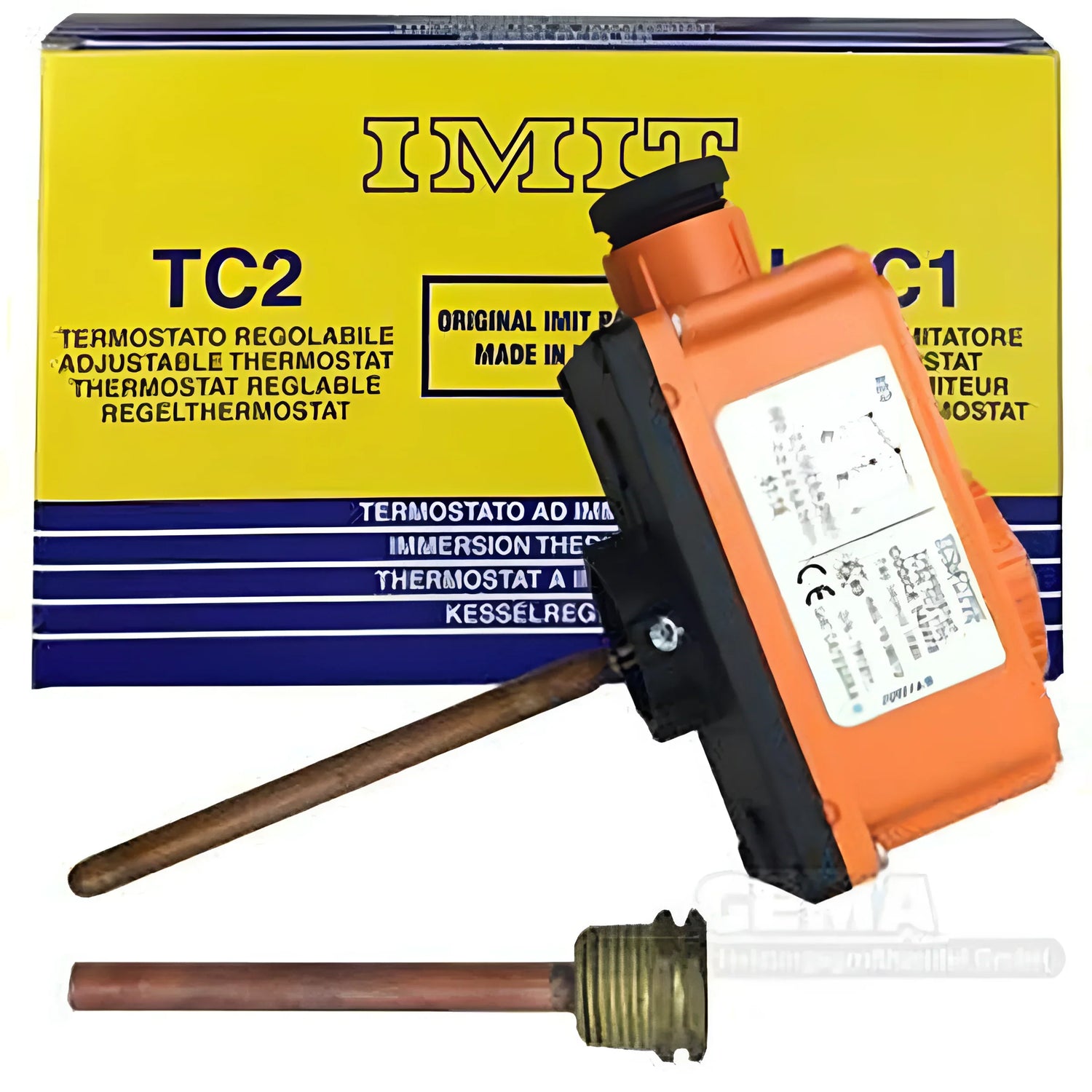

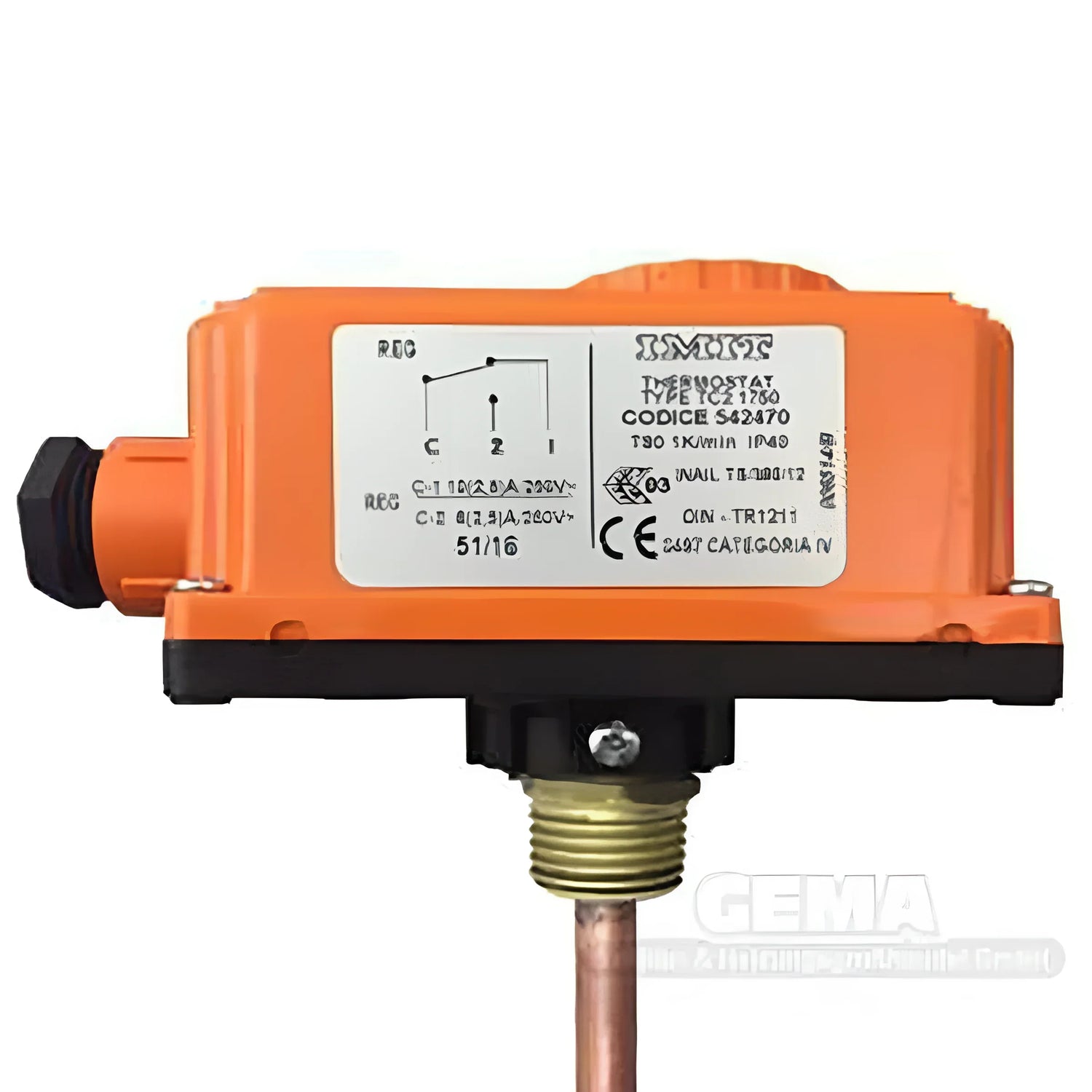

- IMIT TC2 control thermostat
- Name Unit
- Length of the immersion sleeve 85 mm
- Thread size of the immersion sleeve 1/2"
- Temperature range 0 - 90 °C
- Tolerance +-5k
- Differential 6+-2K
- Protection class IP40
- Insulation class 1
- Temperature class &<1K/min
- Max. head temperature 80 °C
- Max. bulb temperature 125 °C
- Storage temperature 15 - 55 °C
- Max. jacket pressure 10 bar
- Time constant &<1'
- Output breaker or changeover contacts
- Contact rating C-1: 10 (2.5)A/250V~ C-2: 6 (2.5)A/250V~
- Efficiency 1B
- Installation conditions normal environment
- Cable entry M20x1.5
Control thermostat inkl.Tauchhsleeve
