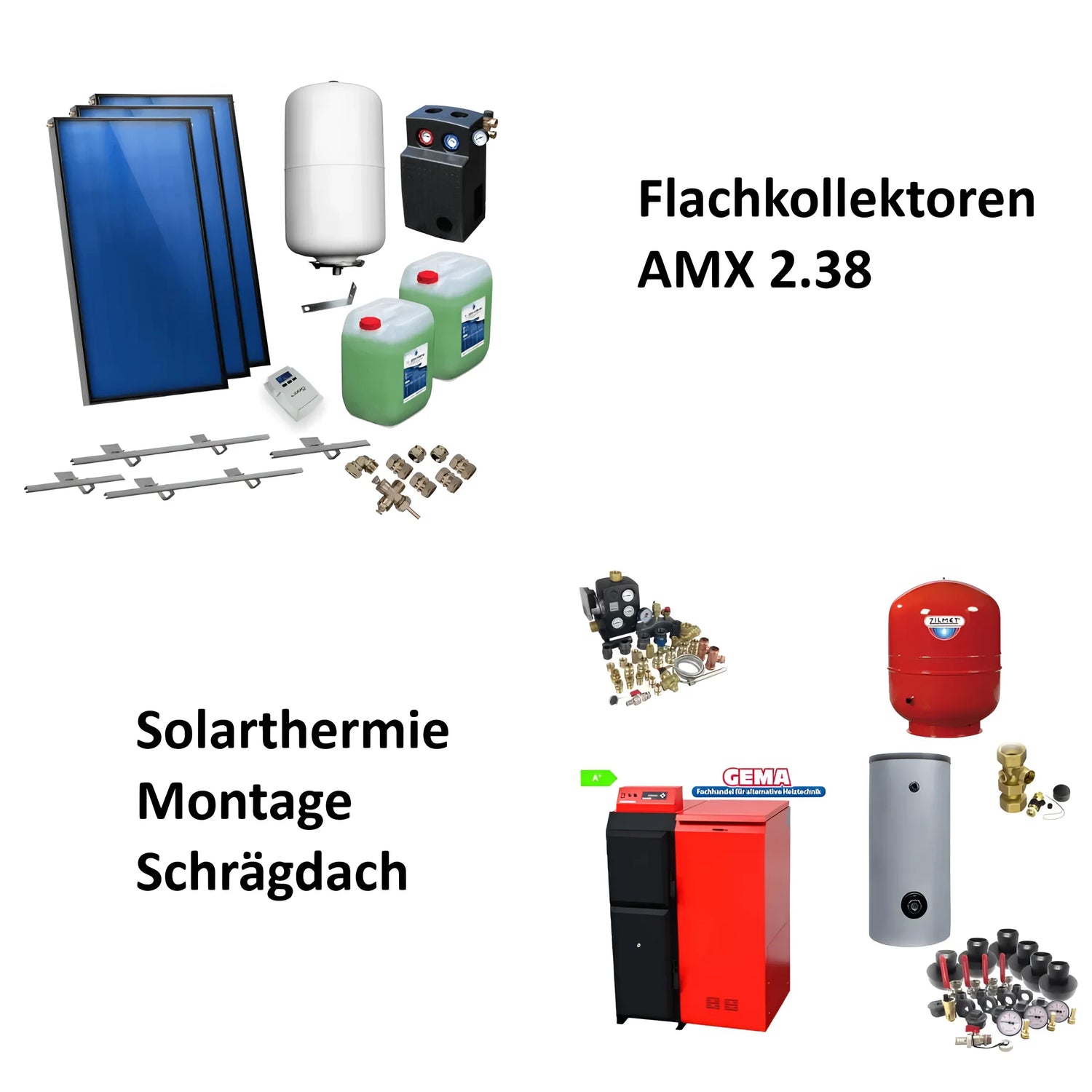

Thermoflux 25/135 plus Solar Package III 7.17 m² – Innovative heating and solar complete system

Product overview

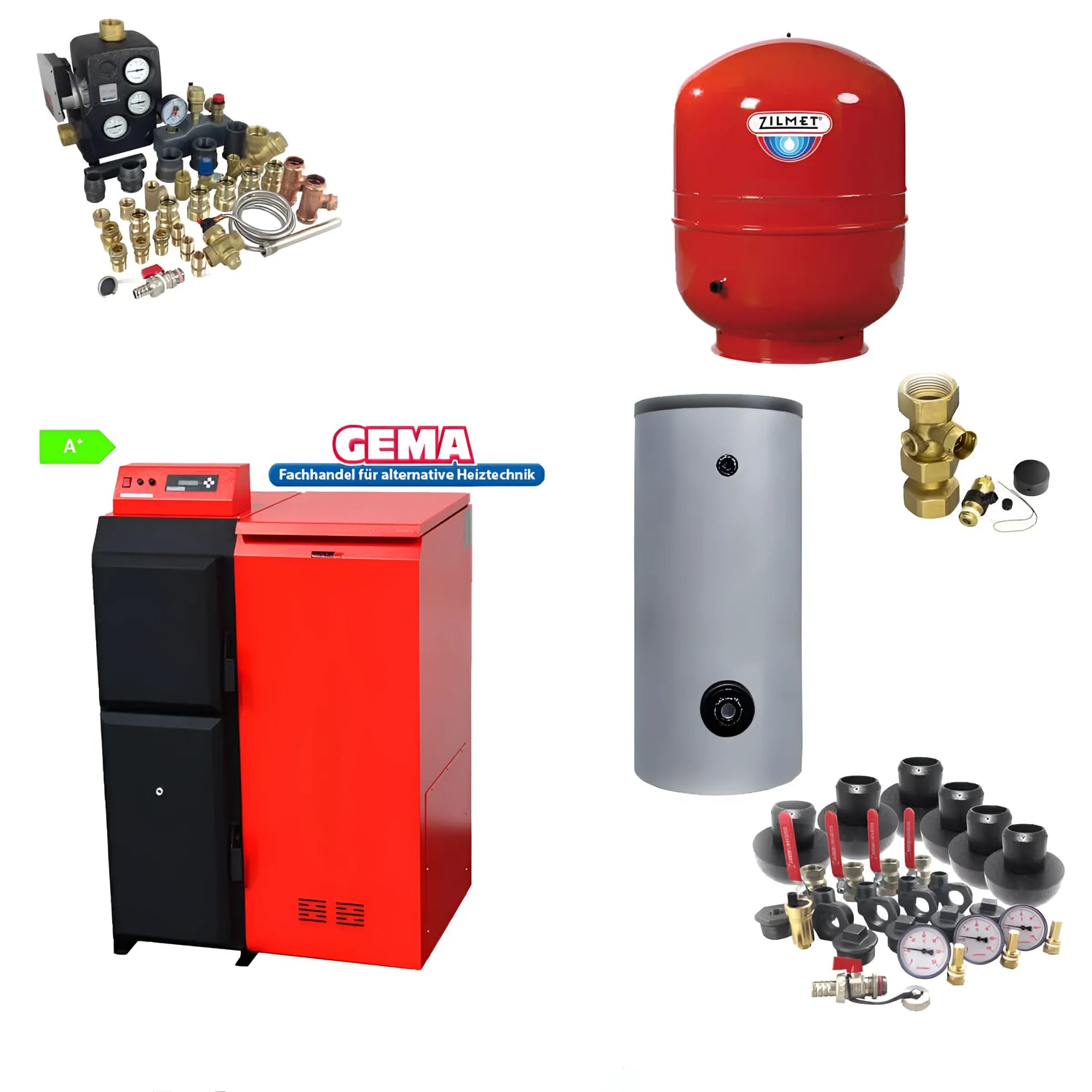

The complete package combines the state-of-the-art Thermoflux Pelling 25 ECO pellet boiler with a generous 135 kg storage tank, a hygienic storage tank with two integrated heat exchangers, and the AMX 2.38 solar package with 7.17 m² of flat-plate collectors. This integrated solution combines efficient heating technology with innovative hot water preparation and sustainable energy generation through solar thermal energy.

The system was developed for both residential and commercial businesses and offers a future-proof heat supply thanks to its simple operation and versatile fuel use. At the same time, it meets the highest standards in terms of safety, efficiency, and environmental awareness.

Efficient heating technology and hot water preparation

The pellet boiler boasts a combustion efficiency of over 91%, ensuring economical heating. The mechanical fuel supply via a screw conveyor and the speed-controlled induced draft fan enable even combustion that optimally adapts to the current heat demand.

Integrated protection and alarm functions, as well as automatic start and stop control, guarantee a safe and robust heating process. This makes the system a reliable investment for a sustainable heat supply.

Versatile fuel use and expansion options

In addition to high-quality pellets, the boiler can also be operated with wood, providing additional flexibility. A switchable thermal drain protection system also increases operational safety.

To meet individual needs, various connection and expansion packages are available. These ensure easy integration and professional connection of the components into existing heating systems.

Hygienic storage tank with 2 heat exchangers – Modern hot water concept

The integrated hygienic storage tank combines the features of an instantaneous water heater with those of a traditional boiler. An innovative stainless steel heat exchanger guarantees instant and hygienic heating of drinking water and minimizes the risk of Legionella.

This system effectively utilizes excess heat and ensures that hot water is continuously and quickly available, even when demand is high.

Connection and mounting sets for optimal integration

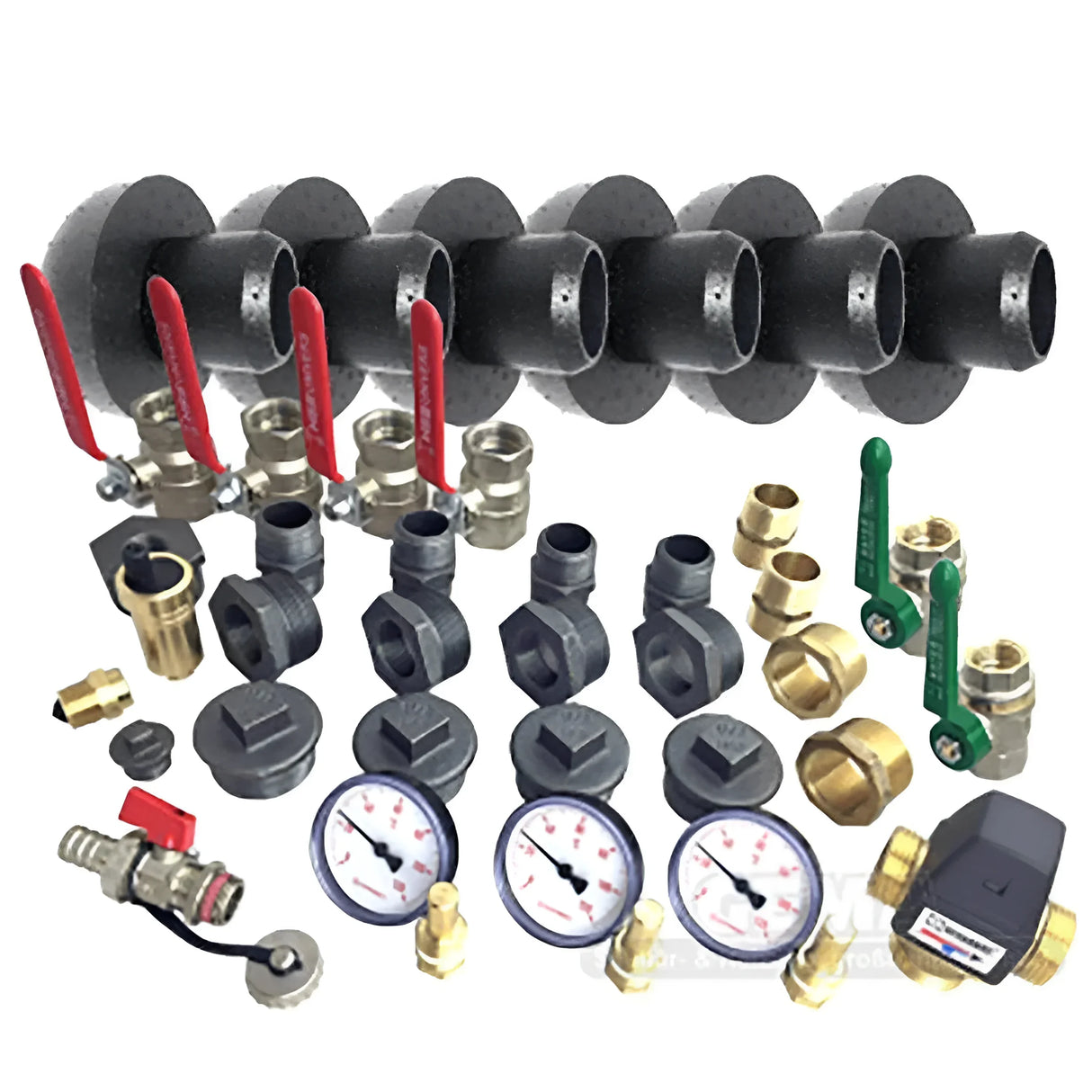

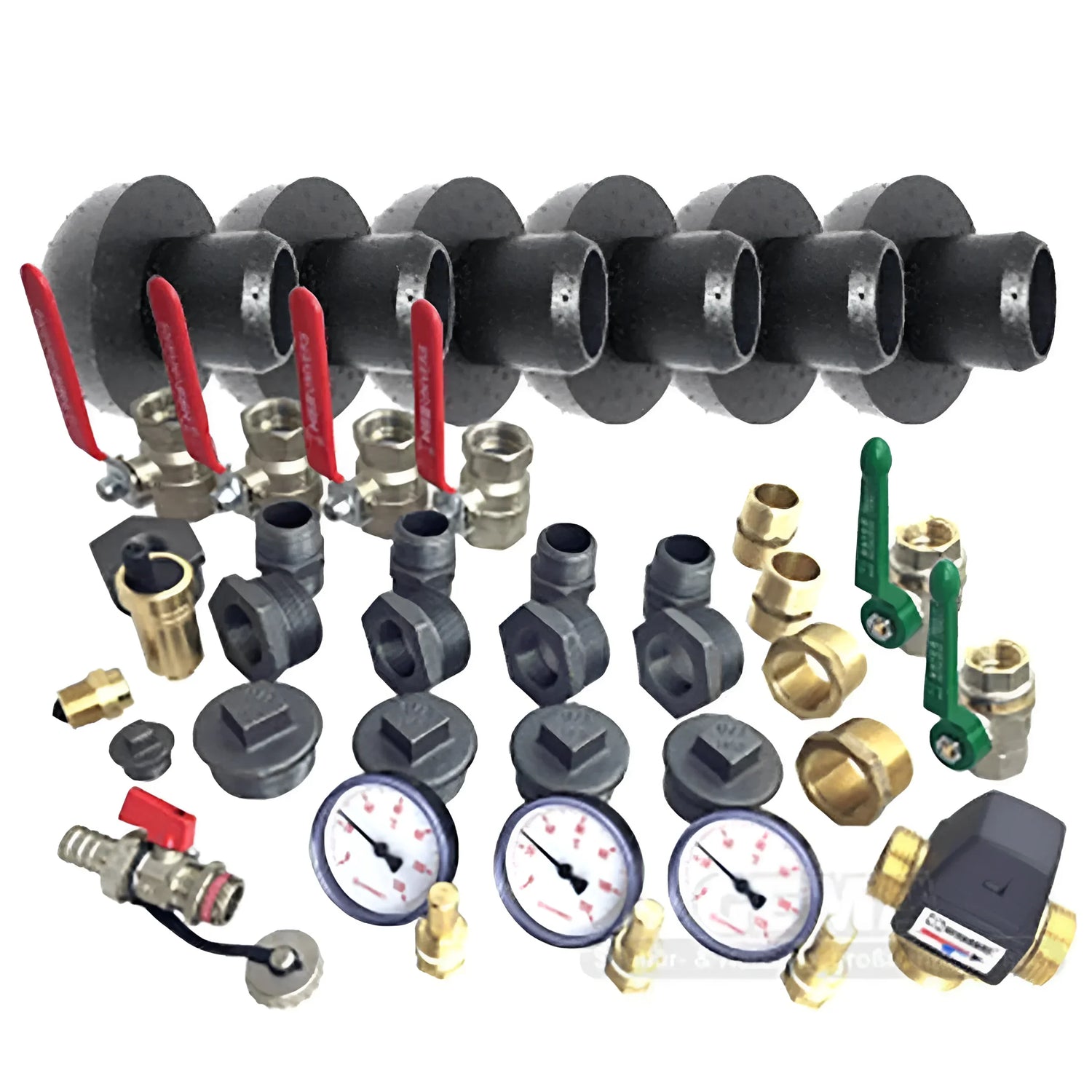

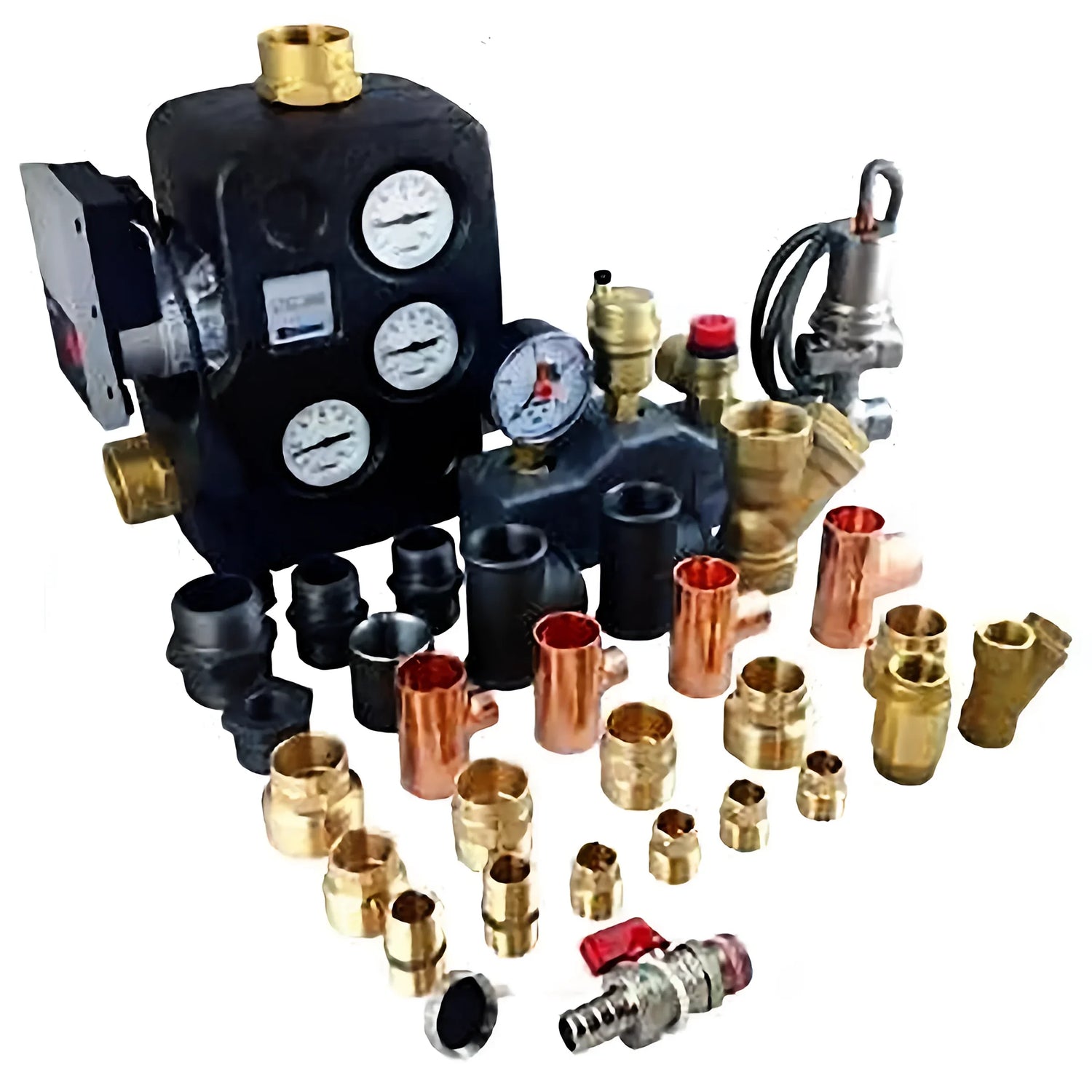

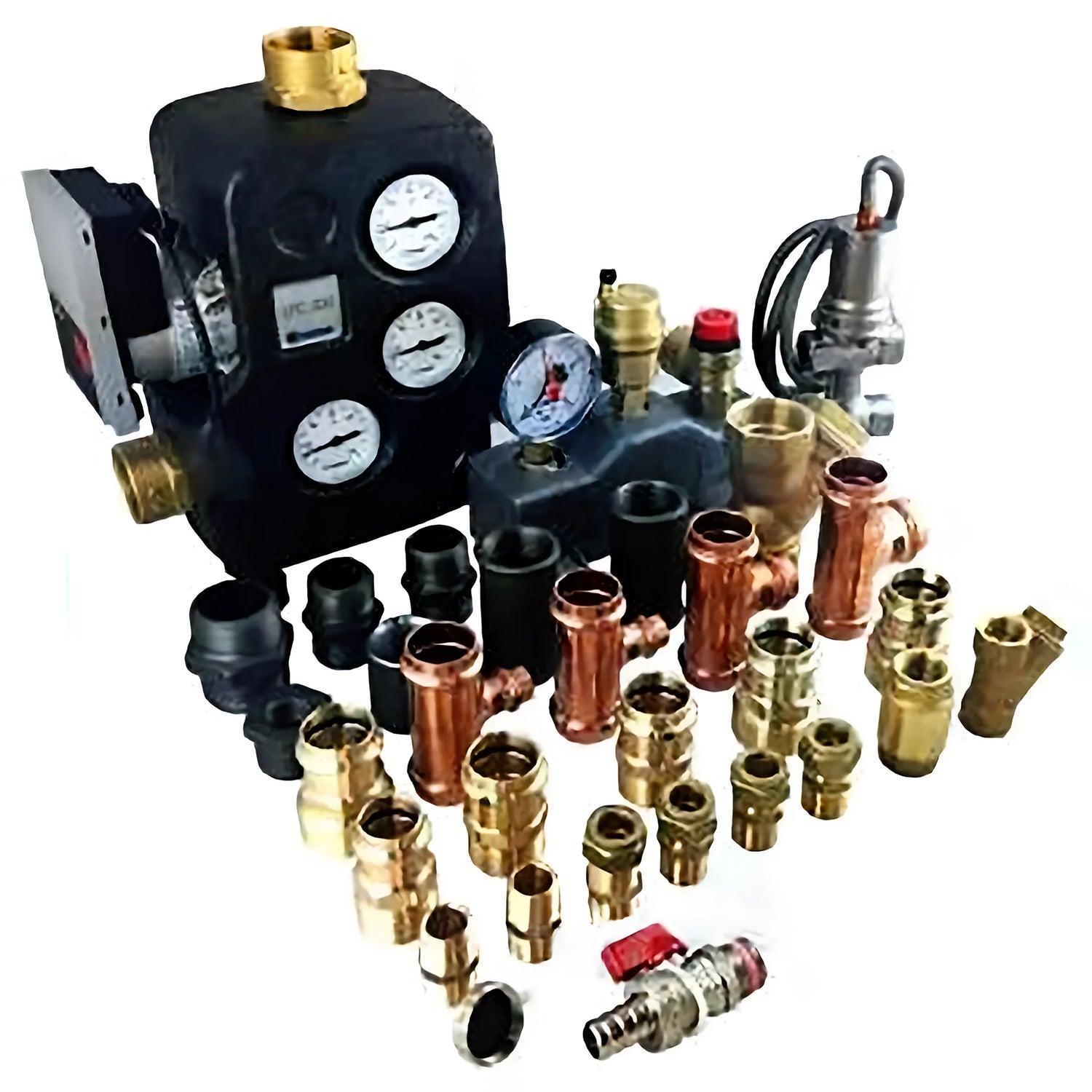

The range includes a wide variety of connection packages that facilitate the professional installation of the system. From the basic package with a high-efficiency pump to extensions for solder and press fittings, everything is designed for a stable and tight connection.

With carefully coordinated safety components such as double thermal safety devices, operational safety is maximized – for reliable and efficient heating operation.

Solar package AMX 2.38 – Efficient solar energy for pitched roofs

The AMX 2.38 solar package with 7.17 m² of flat-plate collectors offers an ideal solution for harnessing solar energy on pitched roofs. Thanks to innovative technologies and high-quality materials, the system achieves high energy efficiency and durability.

The flexible mounting system guarantees optimal adaptation to roof pitches between 25 and 60 degrees, enabling reliable energy generation under a wide range of weather conditions.

State funding and economic efficiency

With this system, users benefit from government subsidies under the Federal Funding for Efficient Buildings – Individual Measures (BEG EM). These funding opportunities can significantly reduce investment costs.

The combination of efficient heating technology and solar energy also ensures a sustainable amortization of the investment, making the system an economically attractive solution for long-term operation.

Performance and design of flat-plate collectors

The AMX 2.38 flat-plate collectors included in the solar package impress with their excellent heat transfer – made possible by the premium copper tube absorber design. This design ensures excellent energy yield even in low sunlight conditions.

The aluminum frame, manufactured using an innovative seamless process, not only gives the collectors robust resistance to environmental influences but also a modern and attractive design that blends harmoniously into different architectural styles.

Modern solar controls and energy use

The solar thermal system is controlled by the GPS PWM Hydra solar station, which uses modern PWM technology to ensure precise control of the pump speed. Integrated features such as a pressure gauge and safety valves significantly simplify operation and maintenance.

In addition, the LOGO PWM solar controller controls the entire system clearly via a large LCD display, allowing user-friendly monitoring of all operating parameters. A backup system ensures that all settings are retained even in the event of a power outage.

Comprehensive scope of delivery for a complete installation

In addition to the pellet boiler and hygienic storage tank, the heating system also includes various connection and installation kits, such as the basic package for different performance ranges and special extensions for solder and press fittings. This ensures optimal connection of all components.

The solar package is delivered as a complete set. In addition to the three AMX 2.38 flat-plate collectors, the scope of delivery includes all essential components, such as a connection kit, mounting kit, solar expansion tank, as well as the modern solar station and solar control system. Detailed instructions assist contractors with quick and smooth installation.

Sustainable future and environmental awareness

Thanks to its high combustion efficiency and minimal emissions, the pellet boiler contributes to environmentally friendly operation. At the same time, the efficient use of solar energy enables a reduction in energy costs and the sustainable use of resources.

With this innovative solution, you can rely on a future-proof heat supply that takes both ecological and economic aspects into account. The combination of modern heating technology and solar energy makes a significant contribution to environmental protection and a sustainable energy supply.

Scope of delivery

Boiler package

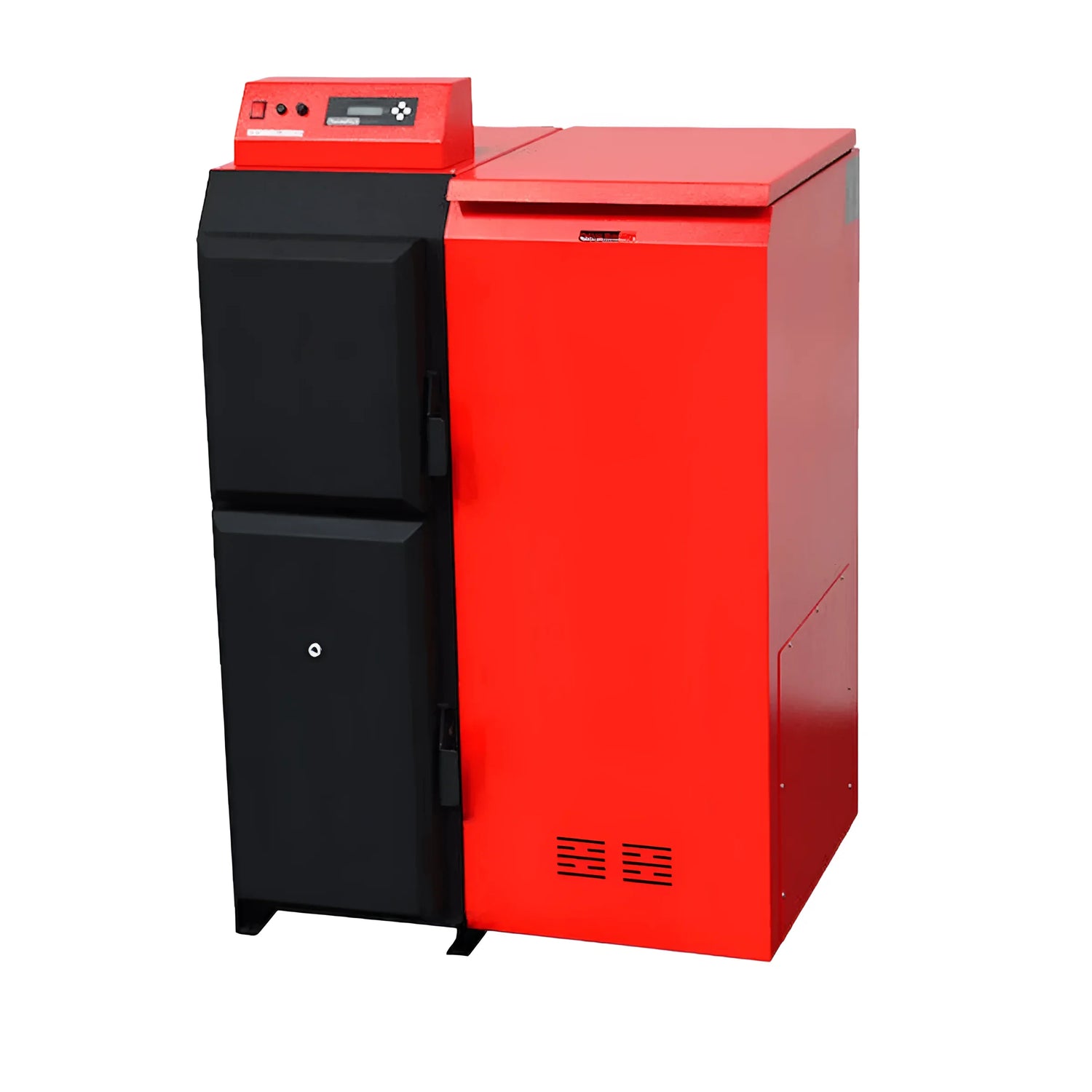

• Thermoflux Eco 25 kW pellet boiler with 135 kg pellet hopper

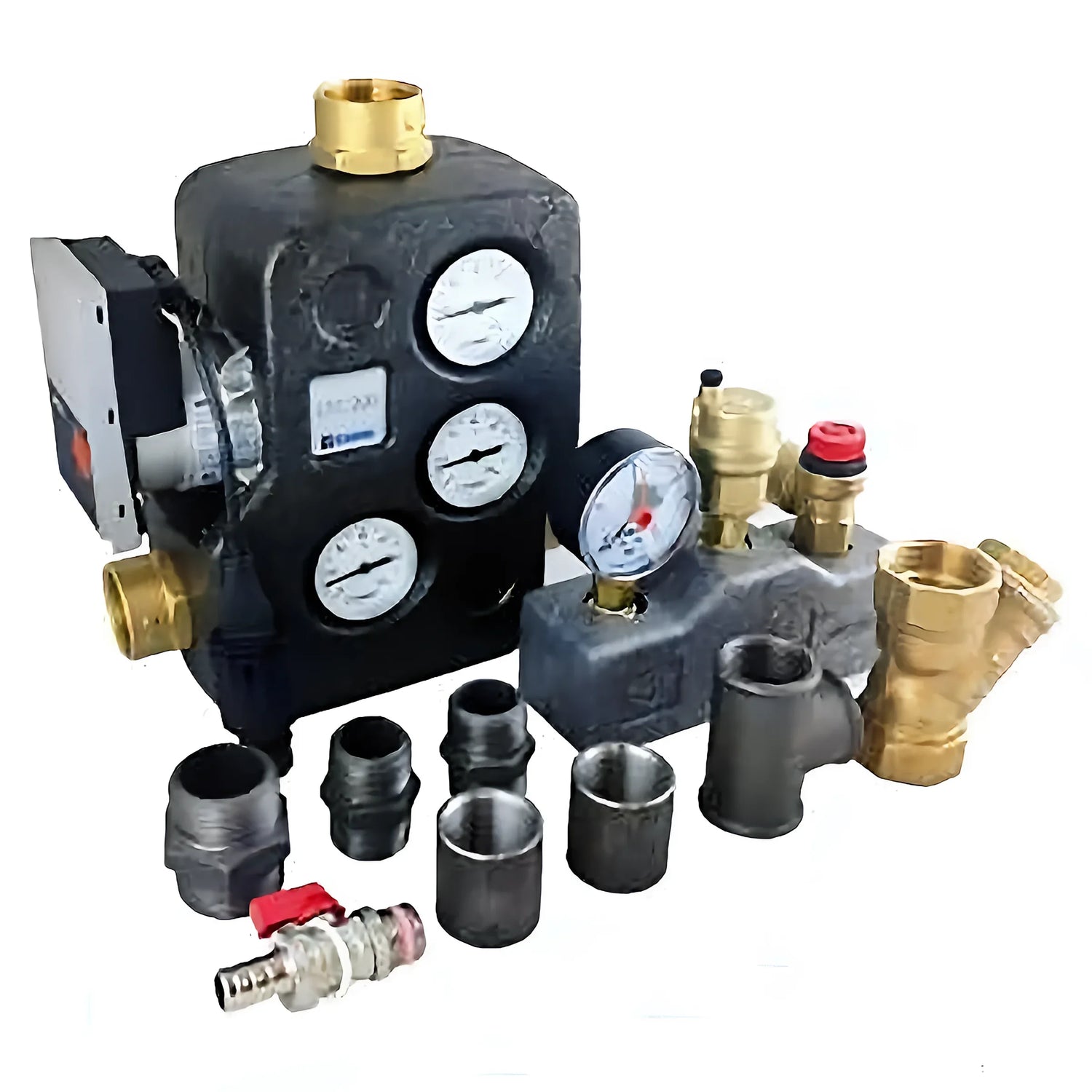

• Boiler connection package of your choice

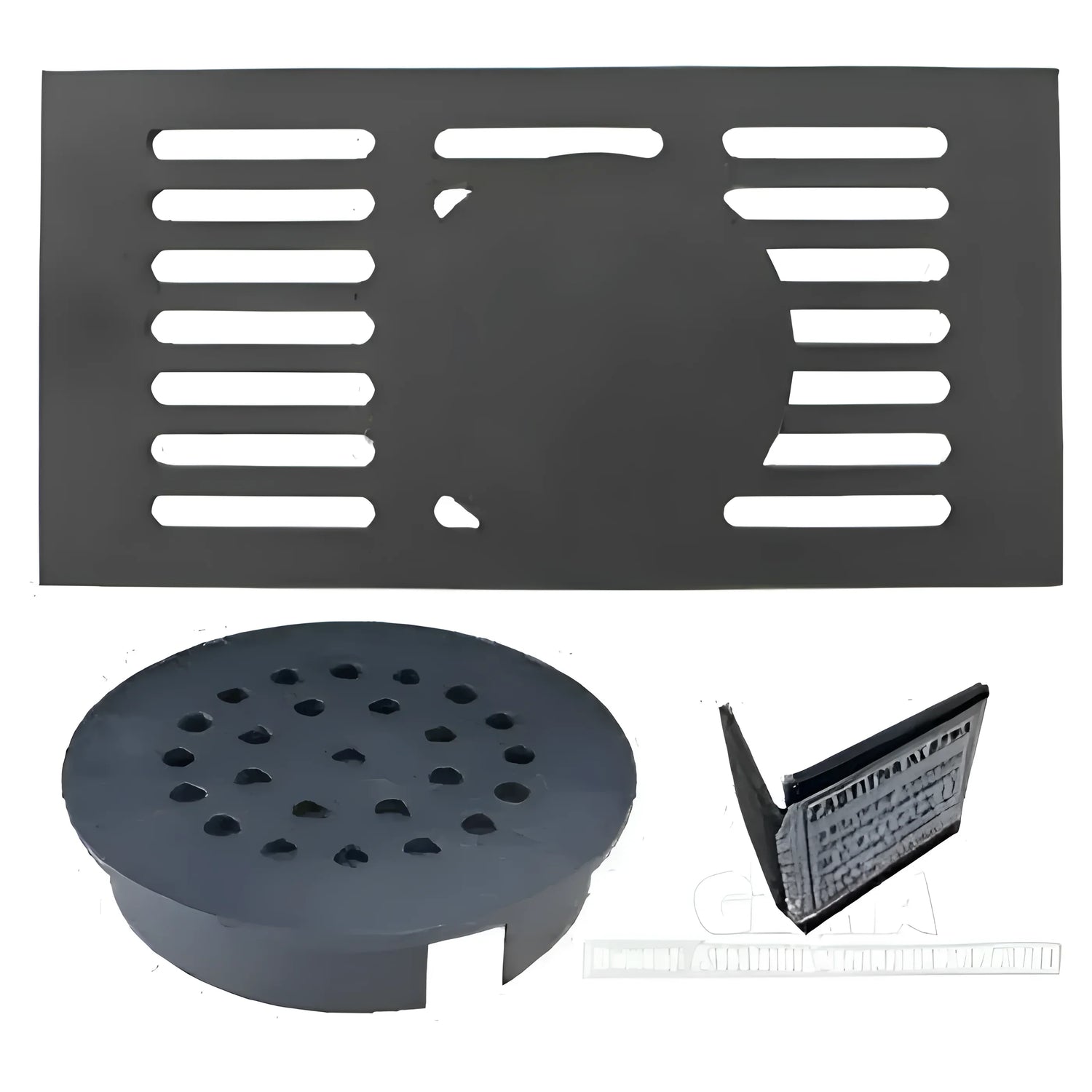

• Log grate for emergency operation

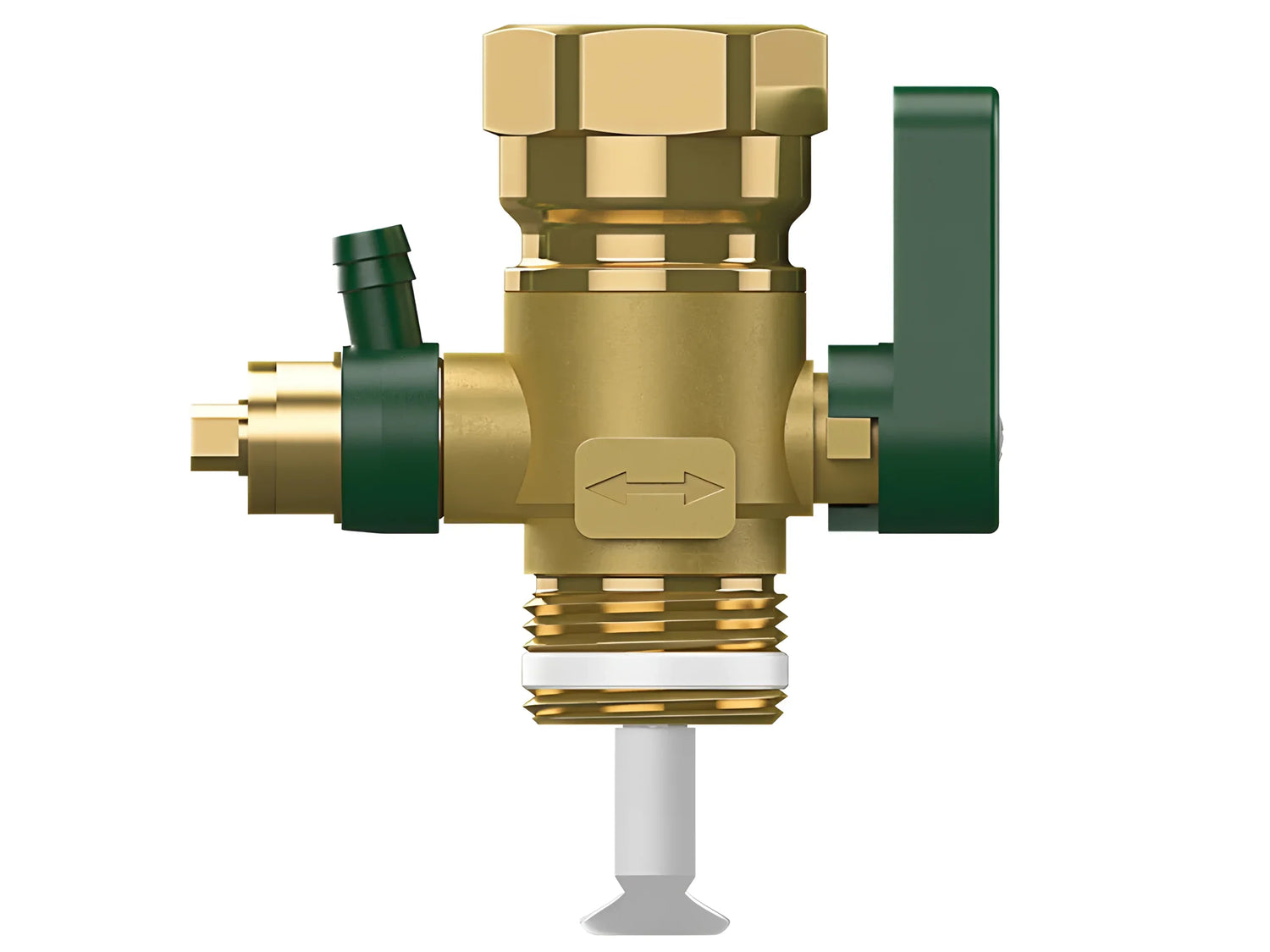

• Expansion tank for domestic water 100 liters including cap valve

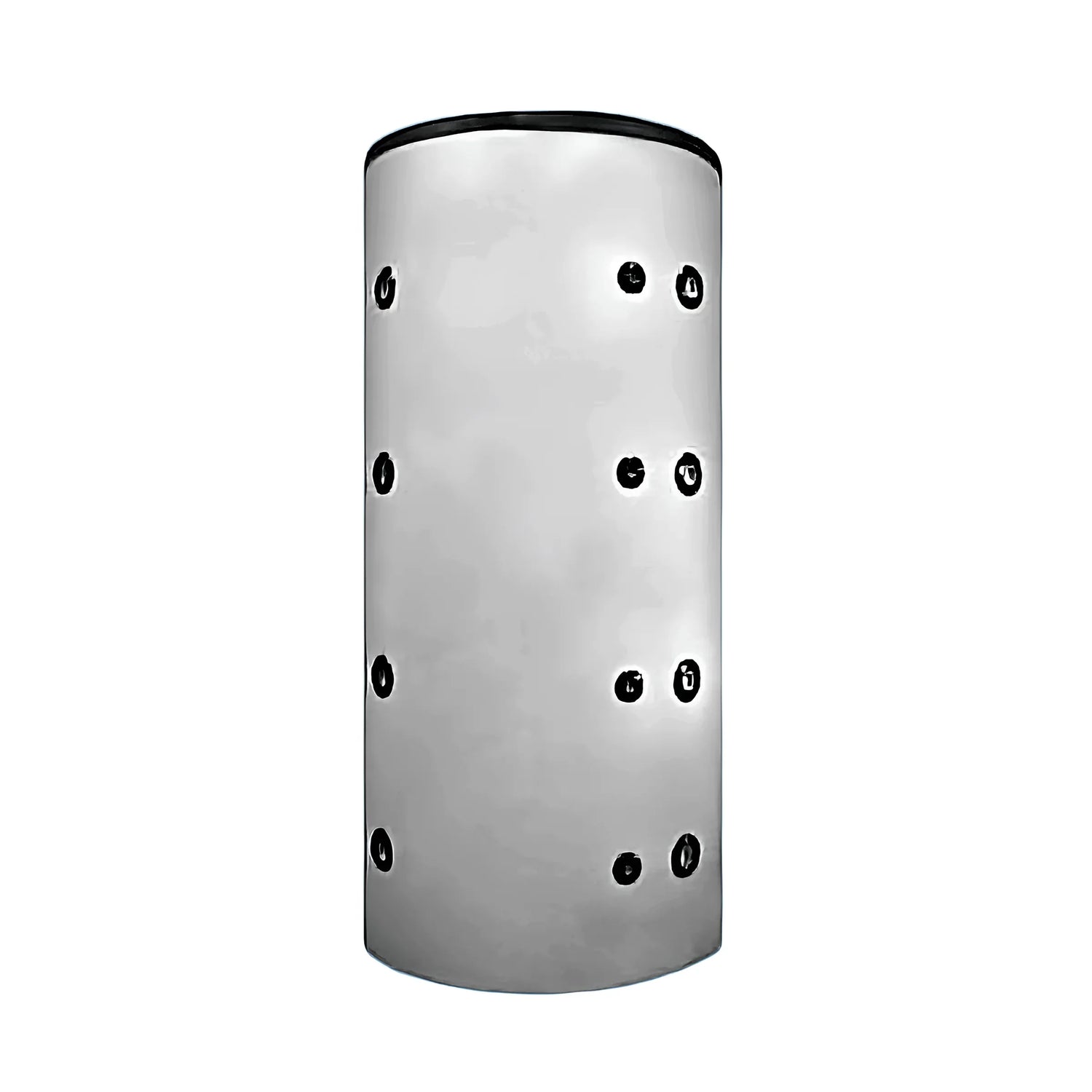

• Hygienic storage tank with 2 heat exchangers 800 liters

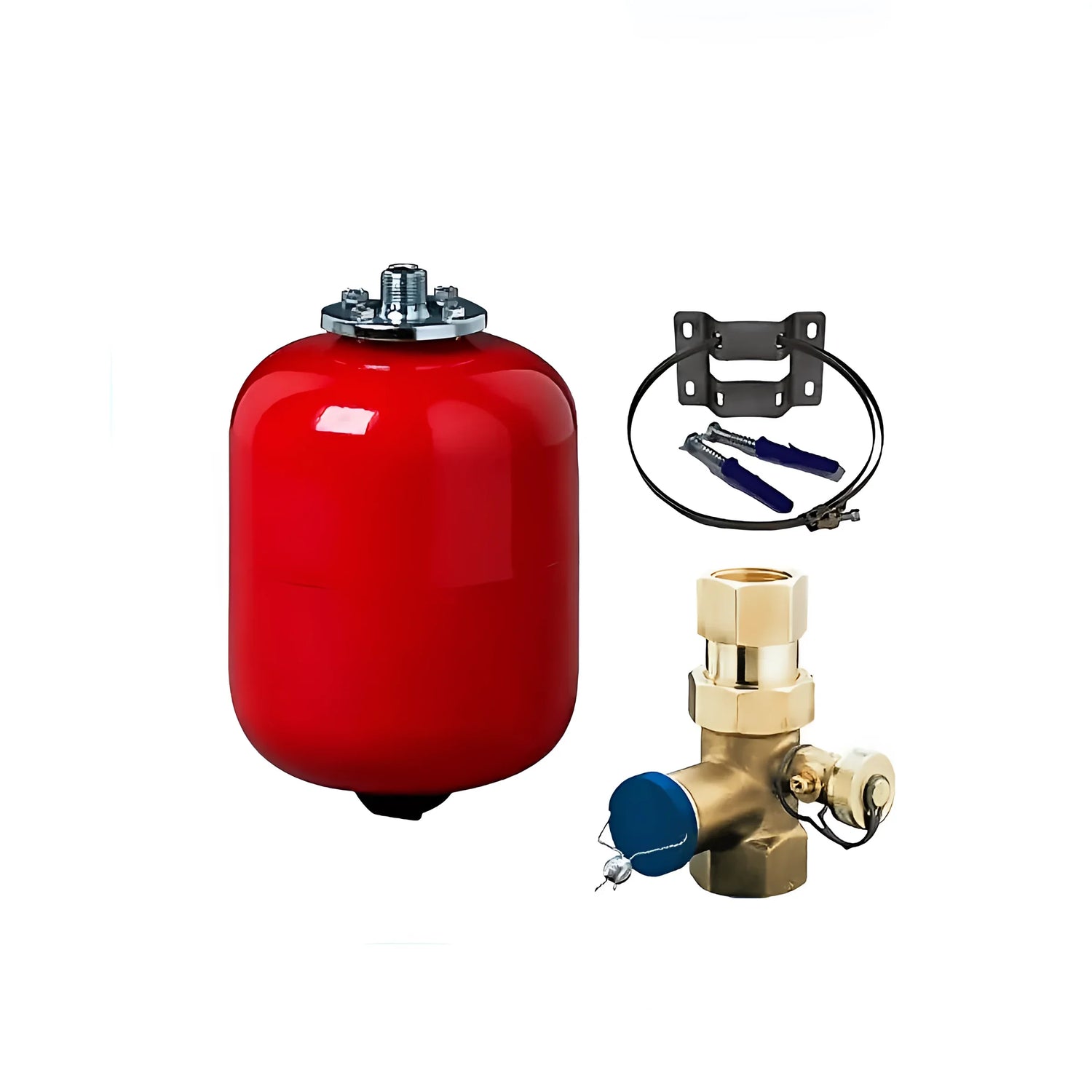

• Expansion tank drinking water 18 liters including FlowJet

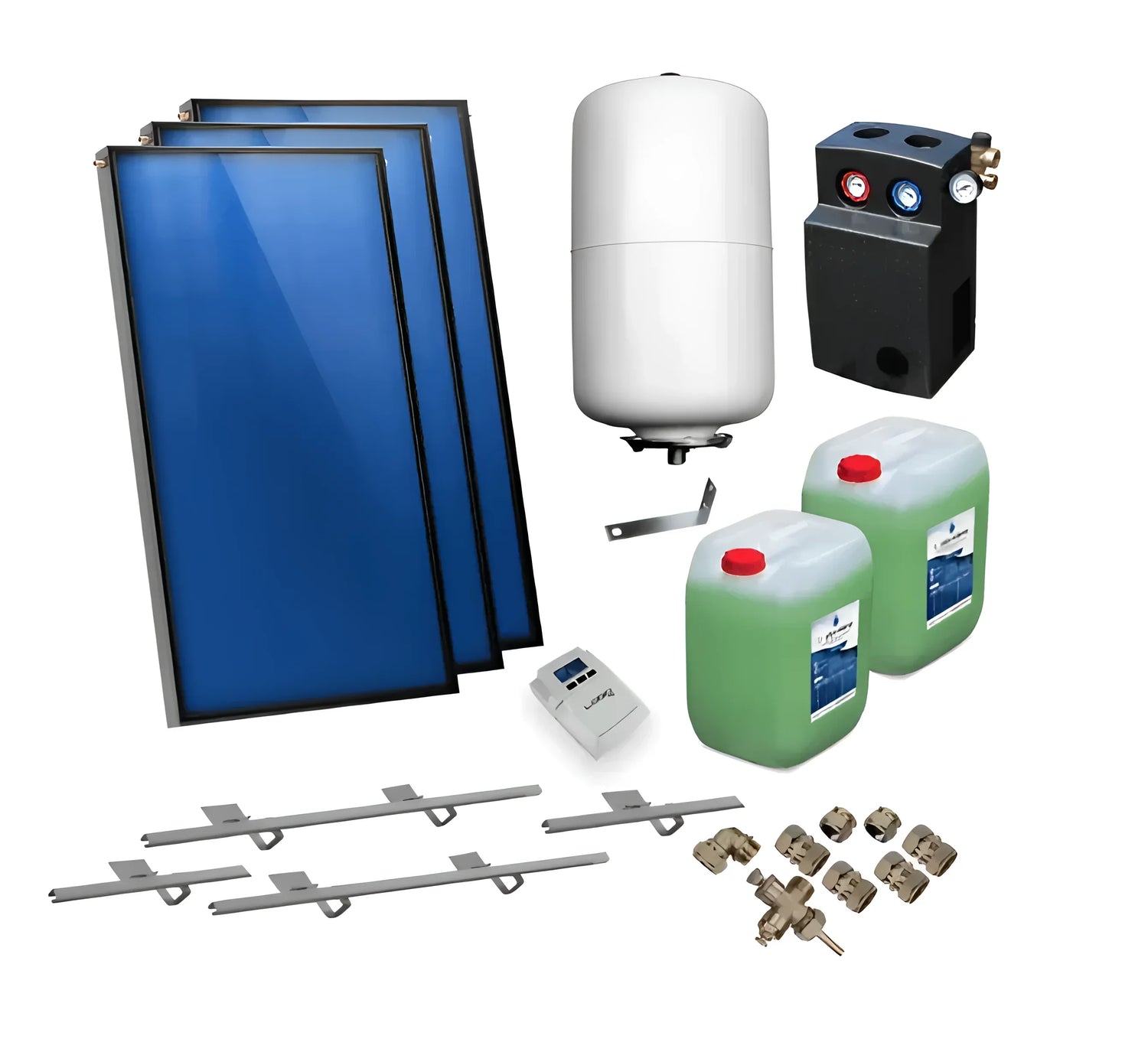

Solar package

• 3 x AMX 2.38 flat-plate collectors

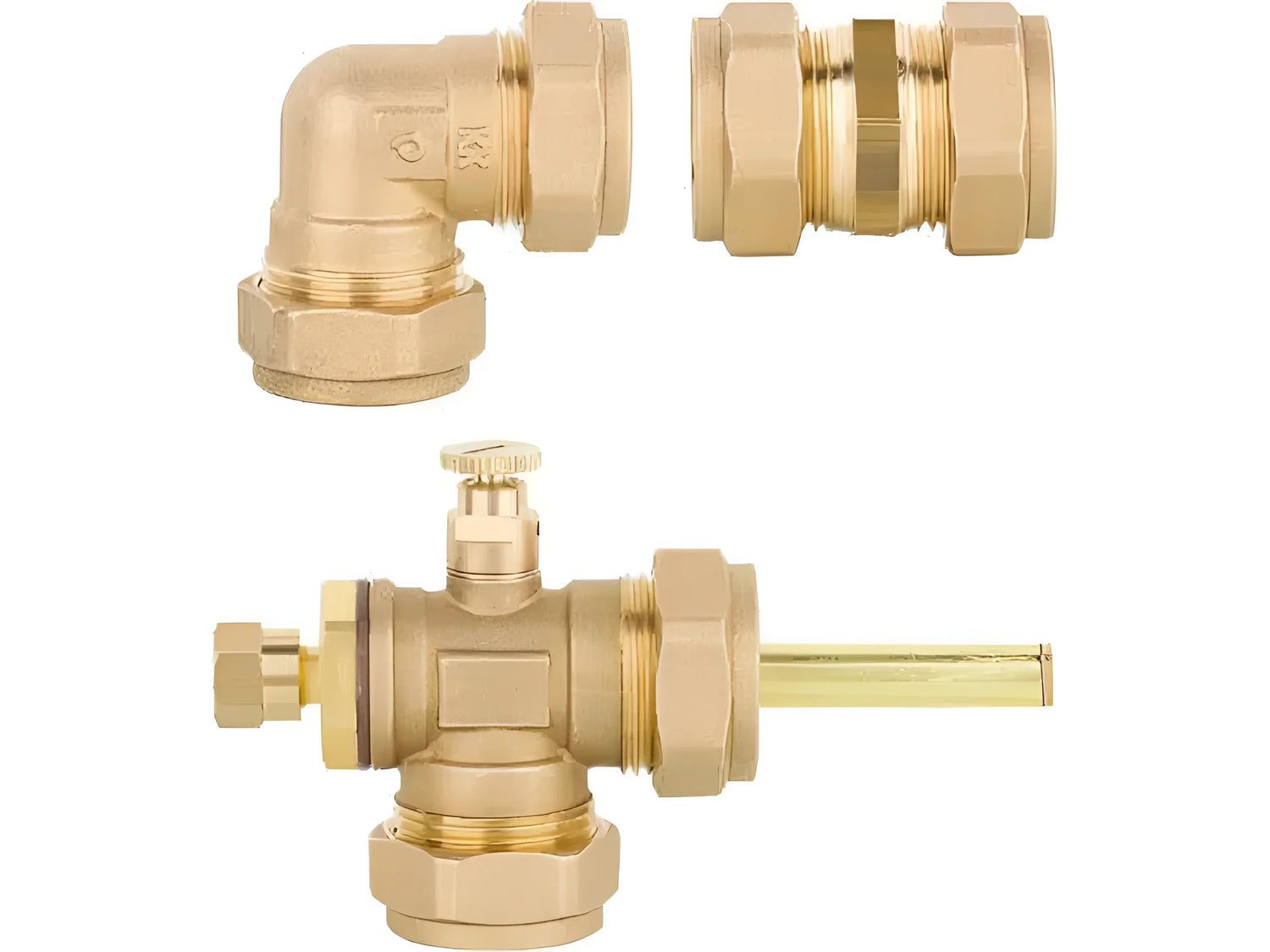

• Connection set for 3 collectors

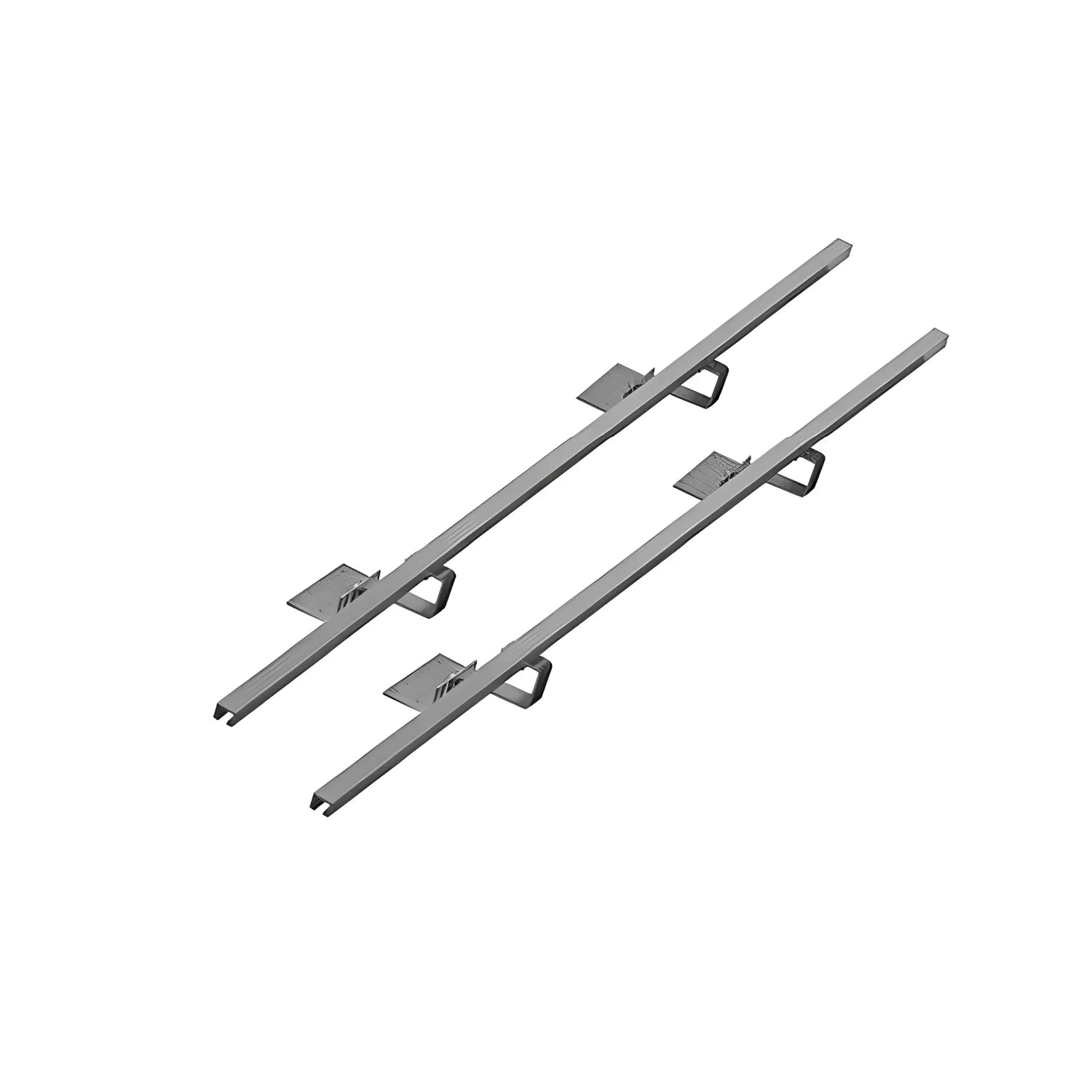

• Mounting kit for 3 collectors
• Solar expansion tank (18 liters) incl.bracket

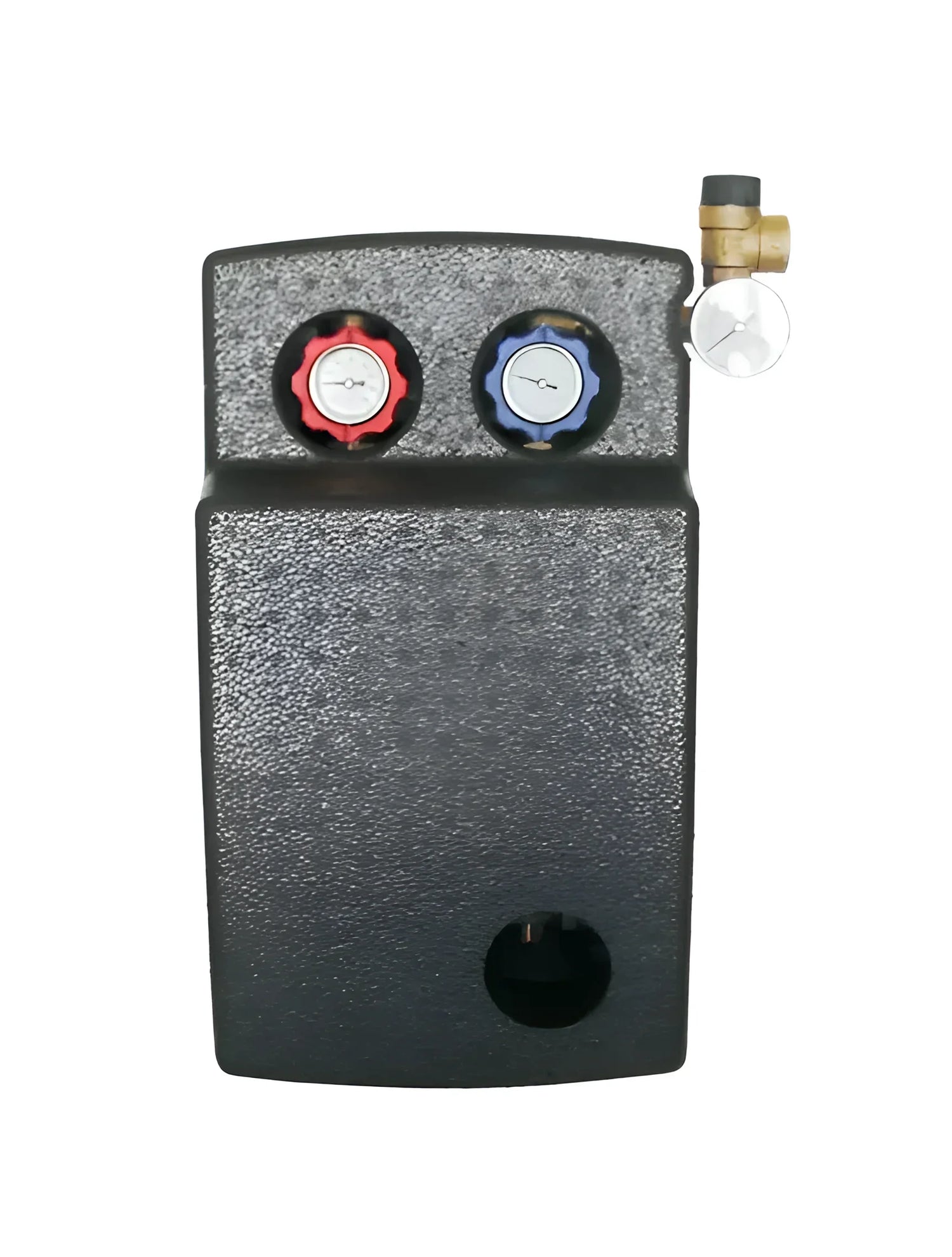

• Sunex solar station GPS Wilo
• Sunex solar control LOGO PWM

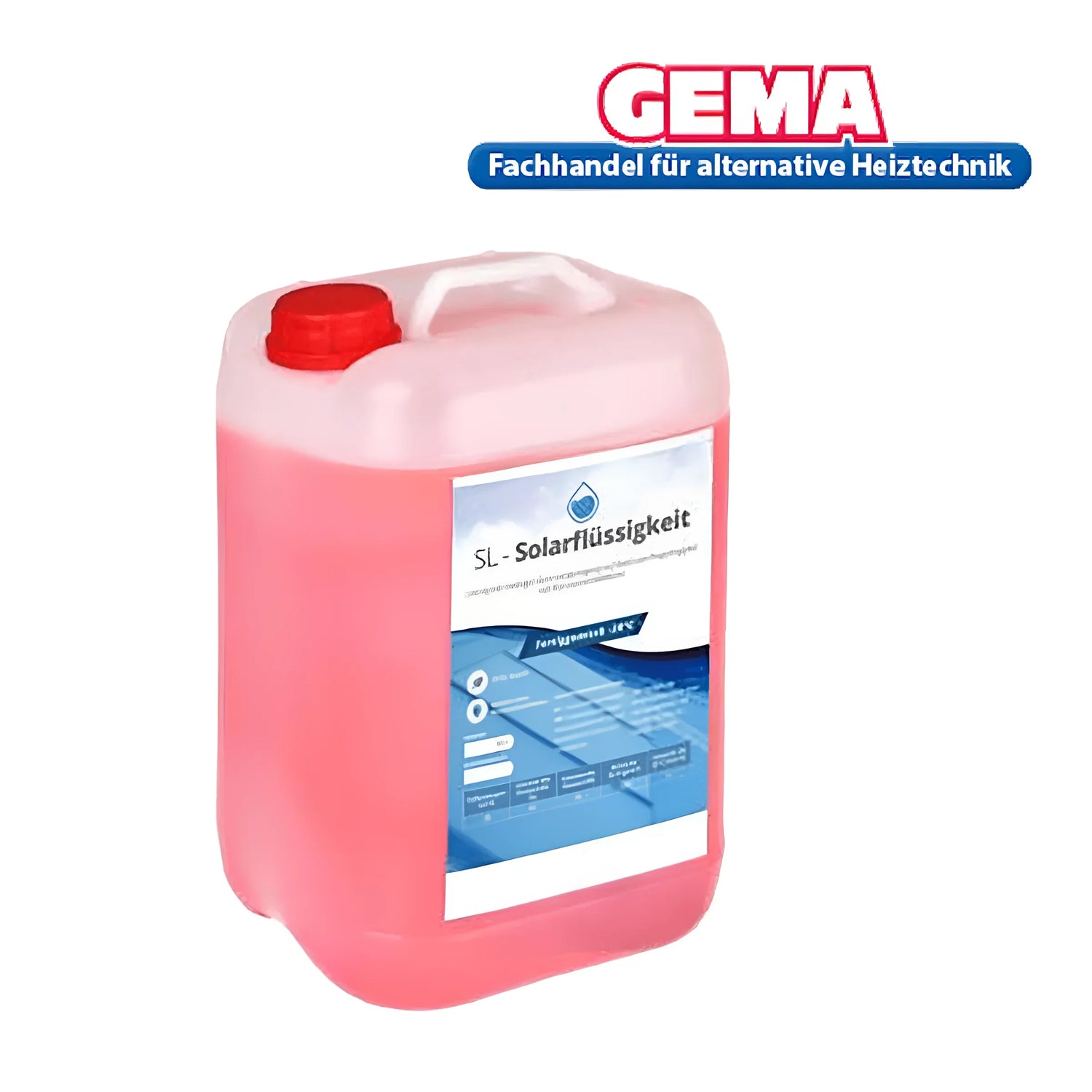

• 2 x 20 liters of solar fluid

Download

boiler

• Product data sheet
• certificate
• Prospectus

memory

• Product data sheet
• insulation

Solar thermal energy

• Product data sheet collectors
