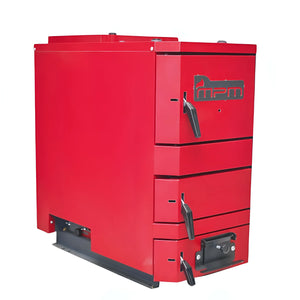

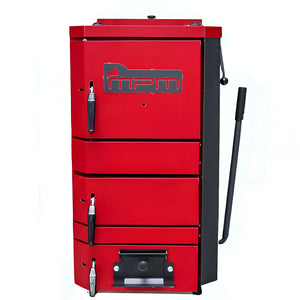

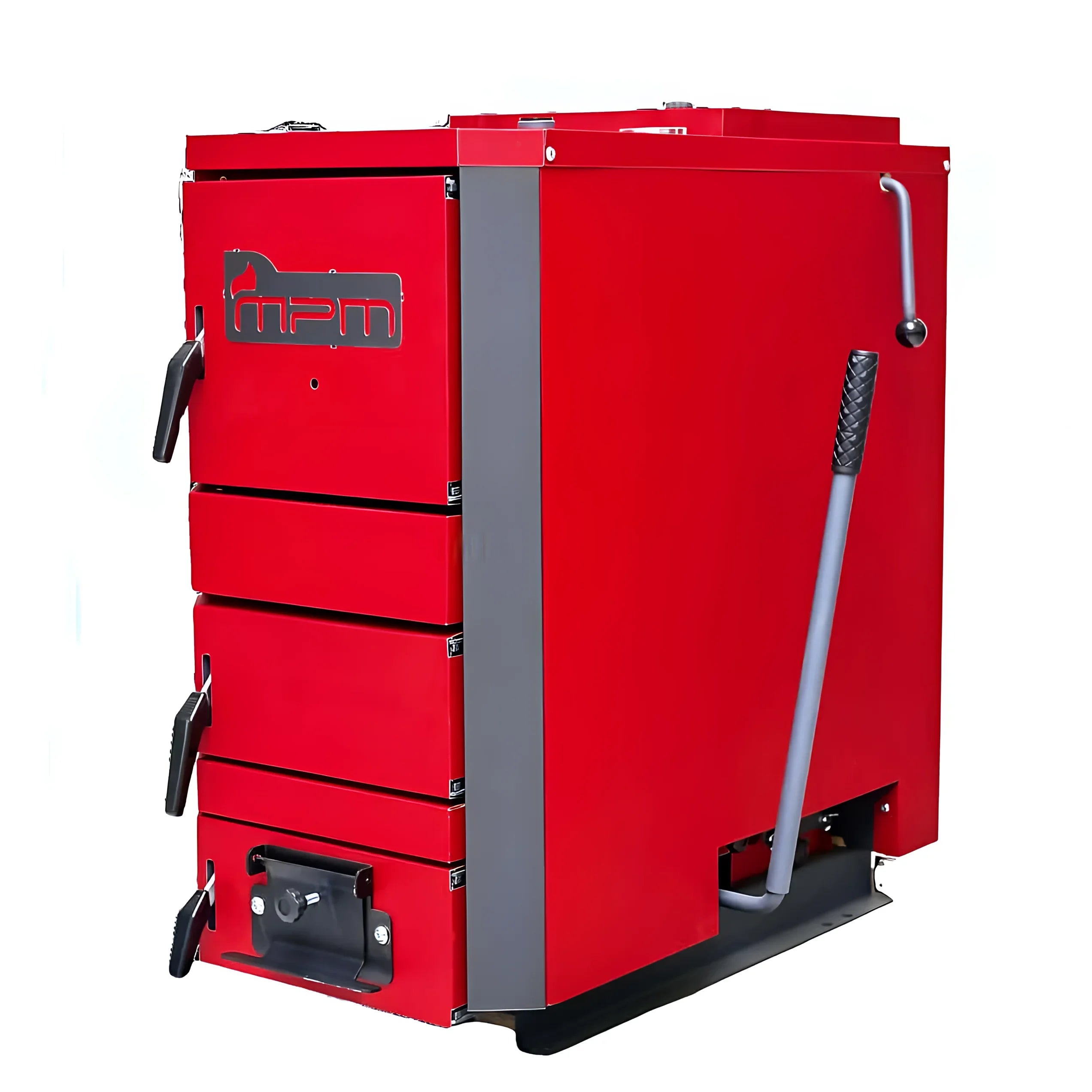

MPM Wood Plus 10 kW wood gasification boiler A+ | Class 5 | Ø178

MPM Wood Plus 10

Product description

The MPM Wood Plus 10 is a wood gasification boiler for logs (moisture content ≤25%) and is designed for efficient operation with a buffer storage tank. Energy efficiency class A+ and boiler class 5 according to PN-EN 303-5.

Highlights

• A+ | EEI 117 | ηs 80%
• Thermal efficiency 90%
• Large filling space for convenient wood loading

Areas of application

• Suitable for:
  • Single-family house,
  • Outbuildings,
  • Workshop,
  • Renovation.
• Not suitable for:
  • Operation without buffer storage
  • damp wood,
  • Waste incineration.

Technical data

• Nominal heating output: 10 kW
• Filling chamber/load: ~42 dm³/~14 kg; Consumption ~2.8 kg/h; Burning time ~5 h
• Buffer storage tank: min. 300 l; recommended 500–600 l
• Flow/return: Ø40 mm; Maximum operating pressure: 1.5 bar
• Temperature: 60–90 °C; return temperature min. 55 °C
• Exhaust gas temperature: 100–120 °C; draft min. ~0.17 mbar/max. ~0.22 mbar; flue pipe Ø178; chimney min. 7 m (180×180 mm)
• Dimensions/Weight: 1070×570×940 mm; approx. 270 kg
• Emissions (mg/m³): PM 13 | OGC 16 | CO 438 | NOx 149

Scope of delivery

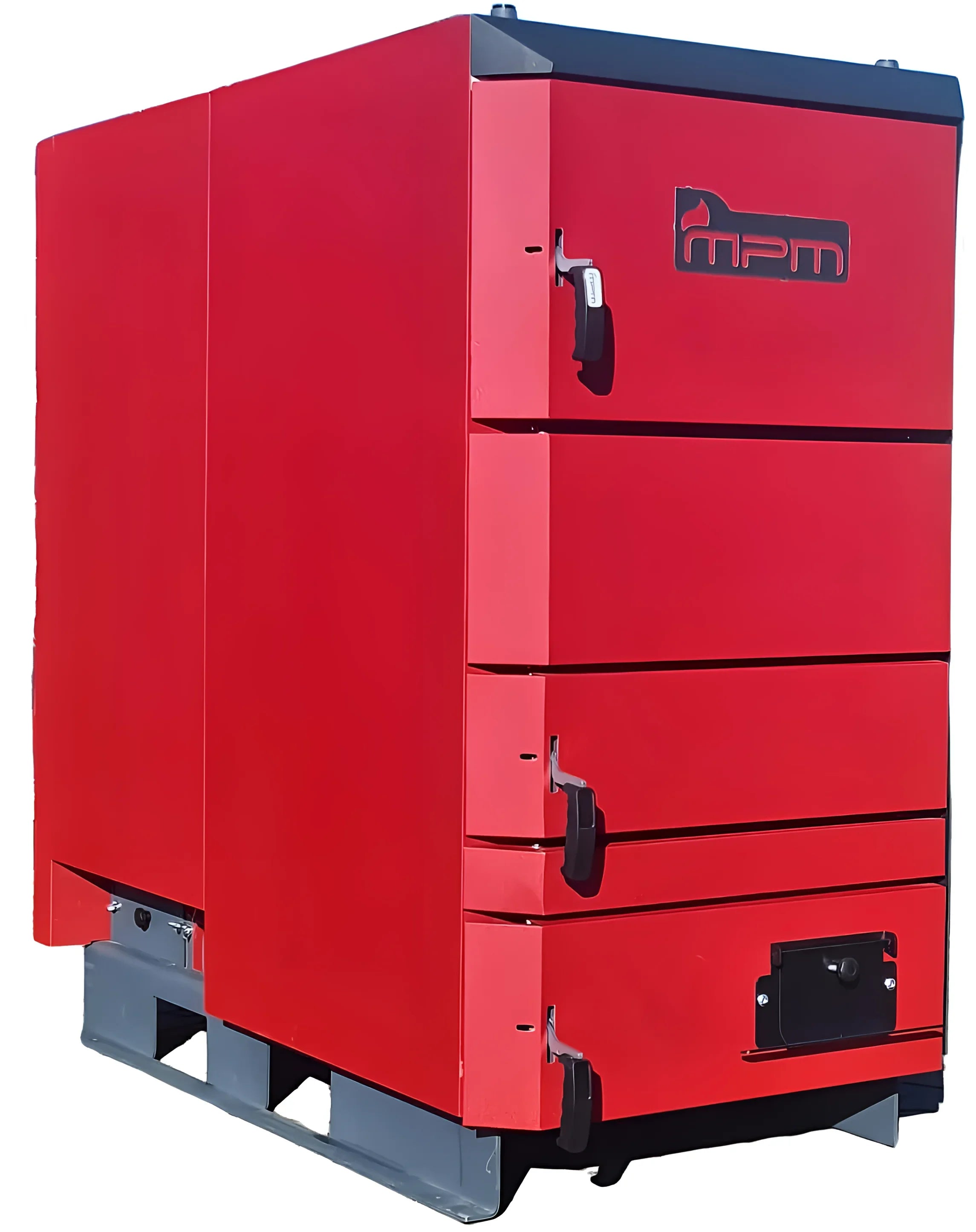

• Boiler (pre-assembled on pallet),
• Accessories in the filling chamber,
• User manual,
• Warranty card.

Conclusion

The 10 kW class for homeowners and trade professionals: efficient, A+ labeled and with practical specifications for buffer tank and chimney.
