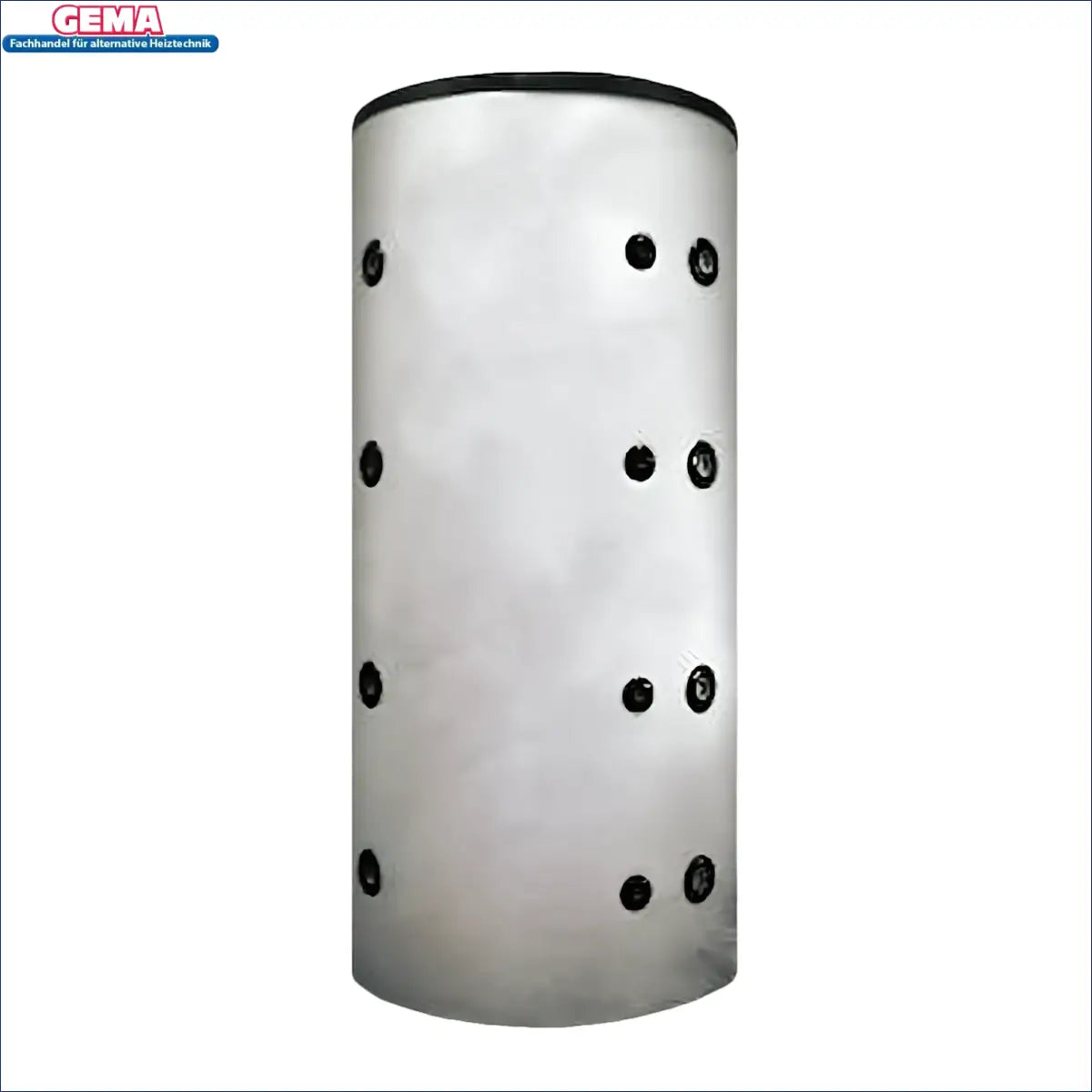

Energy buffer tank/buffer memory with 1 heat exchanger

The buffer tank should be tailored to your needs and heating system. With our buffer tanks in this series, you can implement the following functions: Hot water storage for all types of solid fuel boilers, including heat storage by 1 additional heat generator such as z.B. a thermal solar system.

Recommended application: Energy buffer storage

• When combined with several heat generators (oil, gas, solar, heat pump, etc.)
• When subsequently combined with wood or coal
• If refilling several times a day is necessary in winter
• When using all types of solid fuel boilers

• Material: Steel S235 (raw inside, primed outside)
• Insulation: Polyester fiber fleece insulation with Skymantel in RAL 9006
• Heat exchanger: Solar 1 welded smooth tube exchanger made of steel tube 1" IG
• Connections: 8 sockets with 1 1/2" IG and 4 filling sockets with 1/2" IG
• Venting; socket 1 1/2" IG
• Operating pressure: max 3 bar
• Test pressure: max. 6 bar
• Operating temperature: max. 95°

• Product data sheet
• insulation
